Description

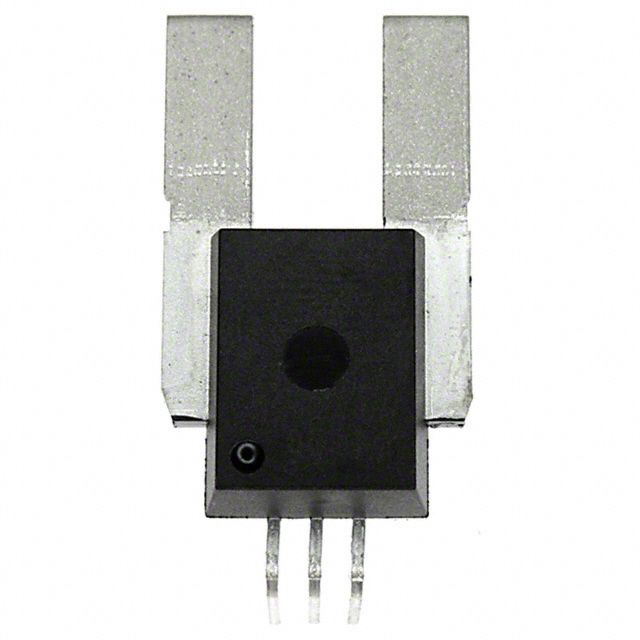

Delivers measurement precision rated at ±0.6% for reliable results. Indicates 1 channels present for improved performance. Provides sensing current set to 200A. Manages the maximum supply current noted as 15mA. Intended for measurement purposes classified as AC/DC. Runs at a frequency of DC ~ 120kHz. Ensures ±1% linearity for precise signal responses. Mounting configuration Through Hole for structural stability. Overall channels 1 for input/output or communication purposes. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Output format Ratiometric, Voltage for electrical or signal communication. Type of housing Tube for safeguarding or transporting components. Style of the enclosure/case 5-CB Formed Leads, PSF that offers mechanical and thermal protection. Type of package 5-CB Module that preserves the integrity of the device. The Unidirectional type of polarization for optical or RF applications. Product status Not For New Designs concerning availability and lifecycle. Time taken to respond 4.6µs for rapid operation or detection. Rating for the sensitivity of sensor or input response 20mV/A. Type classification for the sensor used in the device Hall Effect, Open Loop. Classification series for the product or component ACS770. Supplier package type 5-CB Module for component selection. Voltage requirement 5V for electrical specifications. Voltage supply 5V for device operation.
