Stock:
Distributor: 121
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 36.24000 | ₹ 36.24 |
| 10 | ₹ 30.46000 | ₹ 304.60 |
| 100 | ₹ 28.26000 | ₹ 2,826.00 |
| 500 | ₹ 28.24000 | ₹ 14,120.00 |
| 1000 | ₹ 25.59000 | ₹ 25,590.00 |
| 2000 | ₹ 21.85000 | ₹ 43,700.00 |
| 4000 | ₹ 20.46000 | ₹ 81,840.00 |

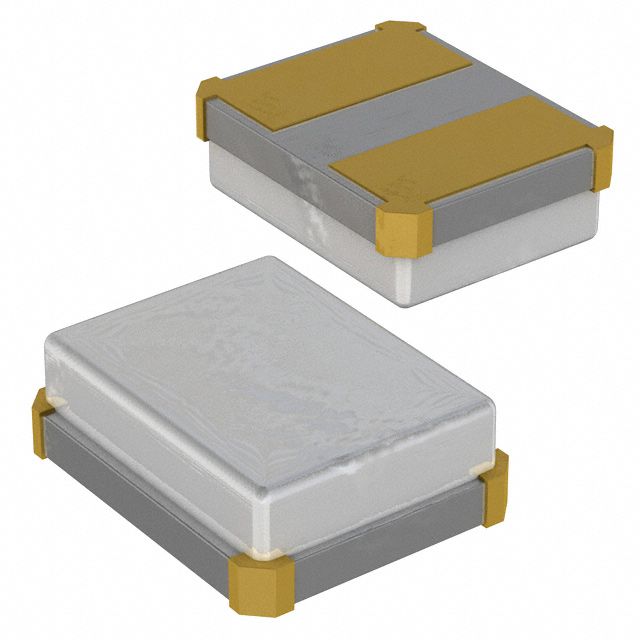

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | XRCHA | |
| IC Encapsulation Type | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® | |
| Availability Status | Obsolete | |
| Device Type Classification | MHz Crystal | |
| Oscillation Rate Hz | 20 MHz | |
| Oscillator Drift Tolerance | ±100ppm | |
| Hz Deviation Limit | ±100ppm | |
| Output Load Cap Value | 8pF | |
| Series Resistance Equivalent | 80 Ohms | |
| Runtime Mode Selection | Fundamental | |
| Ambient Temp Range | -40°C ~ 125°C | |
| Performance Rating Specs | AEC-Q200 | |
| Attachment Mounting Style | Surface Mount | |
| Component Housing Style | 2-SMD, No Lead | |
| Vendor Package Type | - | |
| Package Size Specs | 0.098" L x 0.079" W (2.50mm x 2.00mm) | |
| Maximum Mounted Height | 0.031" (0.80mm) |
Description
Displays ESR rated at 80 Ohms. Runs at a frequency of 20 MHz. Offers ±100ppm frequency consistency under various environmental conditions. Provides ±100ppm frequency range for accurate electronic operations. Maximum installed height of 0.031" (0.80mm) for components affixed to the board. Load capacitance 8pF to maintain reliable electrical performance. Mounting configuration Surface Mount for structural stability. Selected operational mode Fundamental for system configuration. Temperature range -40°C ~ 125°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 2-SMD, No Lead that offers mechanical and thermal protection. Product status Obsolete concerning availability and lifecycle. Criteria AEC-Q200 for electrical, mechanical, or environmental performance. Classification series for the product or component XRCHA. Details on package size 0.098" L x 0.079" W (2.50mm x 2.00mm) for electrical or mechanical components. Measurement dimensions 0.098" L x 0.079" W (2.50mm x 2.00mm) for component specifications. Type classification MHz Crystal for specifications.
