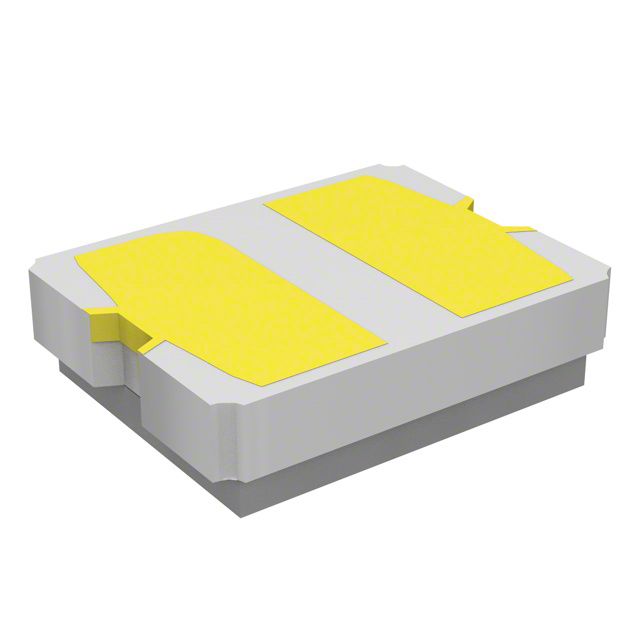

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | CX3225GA, Kyocera | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Device Type Classification | MHz Crystal | |
| Oscillation Rate Hz | 40 MHz | |
| Oscillator Drift Tolerance | ±150ppm | |
| Hz Deviation Limit | ±50ppm | |
| Output Load Cap Value | 8pF | |
| Series Resistance Equivalent | 100 Ohms | |
| Runtime Mode Selection | Fundamental | |
| Ambient Temp Range | -40°C ~ 150°C | |
| Performance Rating Specs | AEC-Q200 | |
| Attachment Mounting Style | Surface Mount | |
| Component Housing Style | 2-SMD, No Lead | |
| Vendor Package Type | 2-SMD (3.2x2.5) | |
| Package Size Specs | 0.126" L x 0.098" W (3.20mm x 2.50mm) | |
| Maximum Mounted Height | 0.037" (0.95mm) |
Description
Displays ESR rated at 100 Ohms. Runs at a frequency of 40 MHz. Offers ±150ppm frequency consistency under various environmental conditions. Provides ±50ppm frequency range for accurate electronic operations. Maximum installed height of 0.037" (0.95mm) for components affixed to the board. Load capacitance 8pF to maintain reliable electrical performance. Mounting configuration Surface Mount for structural stability. Selected operational mode Fundamental for system configuration. Temperature range -40°C ~ 150°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case 2-SMD, No Lead that offers mechanical and thermal protection. Type of package 2-SMD (3.2x2.5) that preserves the integrity of the device. Criteria AEC-Q200 for electrical, mechanical, or environmental performance. Classification series for the product or component CX3225GA, Kyocera. Details on package size 0.126" L x 0.098" W (3.20mm x 2.50mm) for electrical or mechanical components. Measurement dimensions 0.126" L x 0.098" W (3.20mm x 2.50mm) for component specifications. Supplier package type 2-SMD (3.2x2.5) for component selection. Type classification MHz Crystal for specifications.
