Description

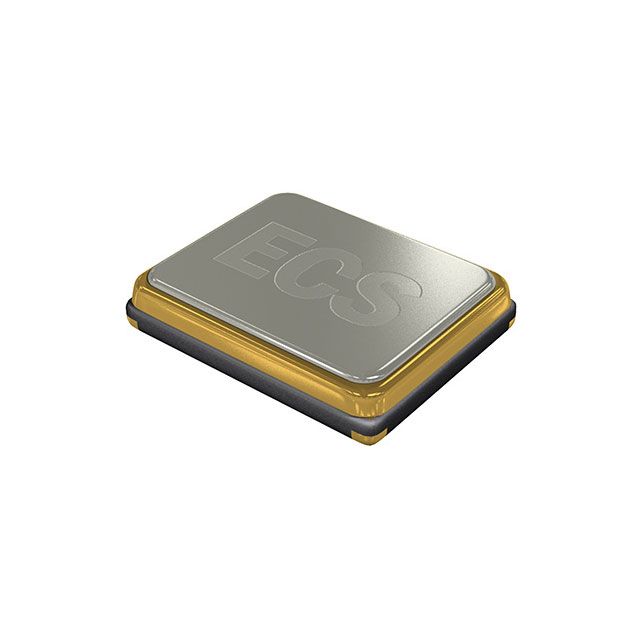

Displays ESR rated at 50 Ohms. Runs at a frequency of 25 MHz. Offers ±20ppm frequency consistency under various environmental conditions. Provides ±10ppm frequency range for accurate electronic operations. Maximum installed height of 0.024" (0.60mm) for components affixed to the board. Load capacitance 10pF to maintain reliable electrical performance. Mounting configuration Surface Mount for structural stability. Selected operational mode Fundamental for system configuration. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 4-SMD, No Lead that offers mechanical and thermal protection. Type of package 4-SMD (2.5x2) that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Classification series for the product or component ECX-2236B2. Details on package size 0.098" L x 0.079" W (2.50mm x 2.00mm) for electrical or mechanical components. Measurement dimensions 0.098" L x 0.079" W (2.50mm x 2.00mm) for component specifications. Supplier package type 4-SMD (2.5x2) for component selection. Type classification MHz Crystal for specifications.
