Description

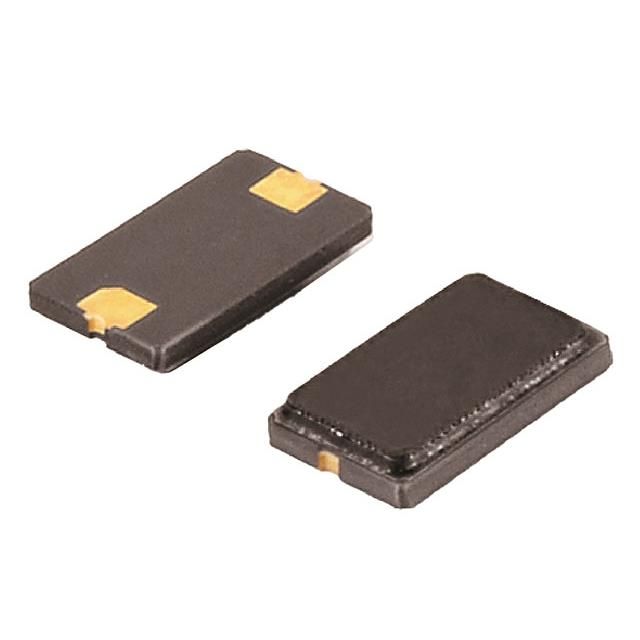

Displays ESR rated at 60 Ohms. Runs at a frequency of 14.7456 MHz. Offers ±30ppm frequency consistency under various environmental conditions. Provides ±20ppm frequency range for accurate electronic operations. Maximum installed height of 0.055" (1.40mm) for components affixed to the board. Load capacitance 18pF to maintain reliable electrical performance. Mounting configuration Surface Mount for structural stability. Selected operational mode Fundamental for system configuration. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 2-SMD, No Lead that offers mechanical and thermal protection. Type of package 2-SMD (6x3.5) that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Classification series for the product or component ECS-23G. Details on package size 0.236" L x 0.138" W (6.00mm x 3.50mm) for electrical or mechanical components. Measurement dimensions 0.236" L x 0.138" W (6.00mm x 3.50mm) for component specifications. Supplier package type 2-SMD (6x3.5) for component selection. Type classification MHz Crystal for specifications.
