Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | MX57 | |
| IC Encapsulation Type | Tray | |
| Availability Status | Active | |
| Fundamental Oscillator | Crystal | |
| Device Type Classification | XO (Standard) | |
| Oscillation Rate Hz | 156.25 MHz | |
| Primary Function Mode | Enable/Disable | |
| Signal Output Format | LVDS | |
| Power Supply Voltage | 2.375V ~ 3.63V | |
| Oscillator Drift Tolerance | ±50ppm | |
| Full Pull Frequency Range | - | |
| Ambient Temp Range | -40°C ~ 85°C | |
| Frequency Spread Range | - | |
| Maximum Supply Current | 90mA | |
| Performance Rating Specs | - | |
| Attachment Mounting Style | Surface Mount | |

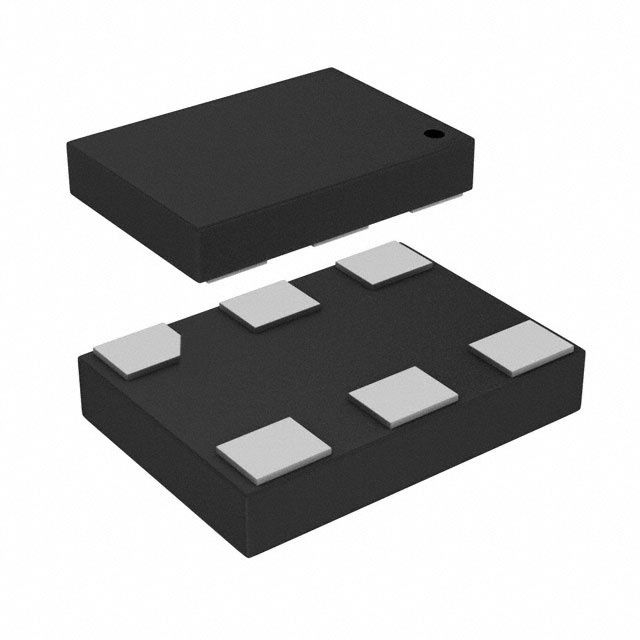

| Component Housing Style | 6-SMD, No Lead | |
| Vendor Package Type | - | |
| Package Size Specs | 0.276" L x 0.197" W (7.00mm x 5.00mm) | |
| Maximum Mounted Height | 0.055" (1.40mm) |
Description
Incorporates a Crystal base resonator to maintain stable frequency control. Manages the maximum supply current noted as 90mA. Runs at a frequency of 156.25 MHz. Offers ±50ppm frequency consistency under various environmental conditions. Engineered with Enable/Disable features for versatile component usage. Maximum installed height of 0.055" (1.40mm) for components affixed to the board. Mounting configuration Surface Mount for structural stability. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Output format LVDS for electrical or signal communication. Type of housing Tray for safeguarding or transporting components. Style of the enclosure/case 6-SMD, No Lead that offers mechanical and thermal protection. Product status Active concerning availability and lifecycle. Classification series for the product or component MX57. Details on package size 0.276" L x 0.197" W (7.00mm x 5.00mm) for electrical or mechanical components. Measurement dimensions 0.276" L x 0.197" W (7.00mm x 5.00mm) for component specifications. Voltage requirement 2.375V ~ 3.63V for electrical specifications. Type classification XO (Standard) for specifications. Voltage supply 2.375V ~ 3.63V for device operation.
