Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 50 | ₹ 6,841.88000 | ₹ 3,42,094.00 |
| 25 | ₹ 7,075.64000 | ₹ 1,76,891.00 |
| 10 | ₹ 7,478.67000 | ₹ 74,786.70 |
| 1 | ₹ 8,599.18000 | ₹ 8,599.18 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tray | |
| Availability Status | Active | |
| Fundamental Oscillator | Crystal | |

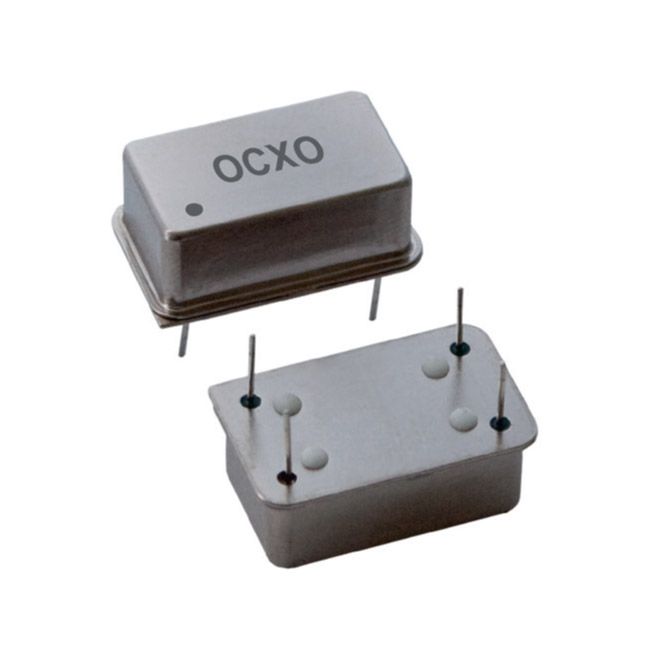

| Device Type Classification | OCXO | |
| Oscillation Rate Hz | 20 MHz | |
| Primary Function Mode | - | |
| Signal Output Format | HCMOS | |
| Power Supply Voltage | 3.3V | |
| Oscillator Drift Tolerance | ±75ppb | |
| Full Pull Frequency Range | - | |
| Ambient Temp Range | 0°C ~ 60°C | |
| Frequency Spread Range | - | |
| Maximum Supply Current | 120mA | |
| Performance Rating Specs | - | |
| Attachment Mounting Style | Through Hole | |
| Component Housing Style | 14-DIP Module, 4 Leads | |
| Vendor Package Type | - | |
| Package Size Specs | 0.795" L x 0.496" W (20.20mm x 12.60mm) | |
| Maximum Mounted Height | 0.335" (8.50mm) |
Description
Incorporates a Crystal base resonator to maintain stable frequency control. Manages the maximum supply current noted as 120mA. Runs at a frequency of 20 MHz. Offers ±75ppb frequency consistency under various environmental conditions. Maximum installed height of 0.335" (8.50mm) for components affixed to the board. Mounting configuration Through Hole for structural stability. Temperature range 0°C ~ 60°C for environmental conditions impacting thermal efficiency. Output format HCMOS for electrical or signal communication. Type of housing Tray for safeguarding or transporting components. Style of the enclosure/case 14-DIP Module, 4 Leads that offers mechanical and thermal protection. Product status Active concerning availability and lifecycle. Details on package size 0.795" L x 0.496" W (20.20mm x 12.60mm) for electrical or mechanical components. Measurement dimensions 0.795" L x 0.496" W (20.20mm x 12.60mm) for component specifications. Voltage requirement 3.3V for electrical specifications. Type classification OCXO for specifications. Voltage supply 3.3V for device operation.
