Stock:
Distributor: 116
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 10000 | ₹ 153.79000 | ₹ 15,37,900.00 |
| 5000 | ₹ 154.59000 | ₹ 7,72,950.00 |
| 2050 | ₹ 155.39000 | ₹ 3,18,549.50 |
| 1050 | ₹ 156.19000 | ₹ 1,63,999.50 |
| 1000 | ₹ 157.43000 | ₹ 1,57,430.00 |
Stock:
Distributor: 110
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1000 | ₹ 160.20000 | ₹ 1,60,200.00 |
| 750 | ₹ 163.76000 | ₹ 1,22,820.00 |
| 500 | ₹ 206.48000 | ₹ 1,03,240.00 |
| 250 | ₹ 335.53000 | ₹ 83,882.50 |
Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 2500 | ₹ 172.50000 | ₹ 4,31,250.00 |
| 1000 | ₹ 182.37000 | ₹ 1,82,370.00 |
| 500 | ₹ 190.22000 | ₹ 95,110.00 |
| 250 | ₹ 198.41000 | ₹ 49,602.50 |
| 100 | ₹ 209.79000 | ₹ 20,979.00 |
| 50 | ₹ 218.83000 | ₹ 10,941.50 |
| 25 | ₹ 228.27000 | ₹ 5,706.75 |
| 10 | ₹ 241.37000 | ₹ 2,413.70 |
| 1 | ₹ 277.68000 | ₹ 277.68 |
Stock:
Distributor: 108
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1000 | ₹ 185.12000 | ₹ 1,85,120.00 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | ECS-100X | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Active | |
| Fundamental Oscillator | Crystal | |
| Device Type Classification | XO (Standard) | |
| Oscillation Rate Hz | 30 MHz | |
| Primary Function Mode | - | |
| Signal Output Format | TTL | |
| Power Supply Voltage | 5V | |
| Oscillator Drift Tolerance | ±100ppm | |
| Full Pull Frequency Range | - | |
| Ambient Temp Range | 0°C ~ 70°C | |
| Frequency Spread Range | - | |
| Maximum Supply Current | 70mA | |
| Performance Rating Specs | - | |
| Attachment Mounting Style | Through Hole | |

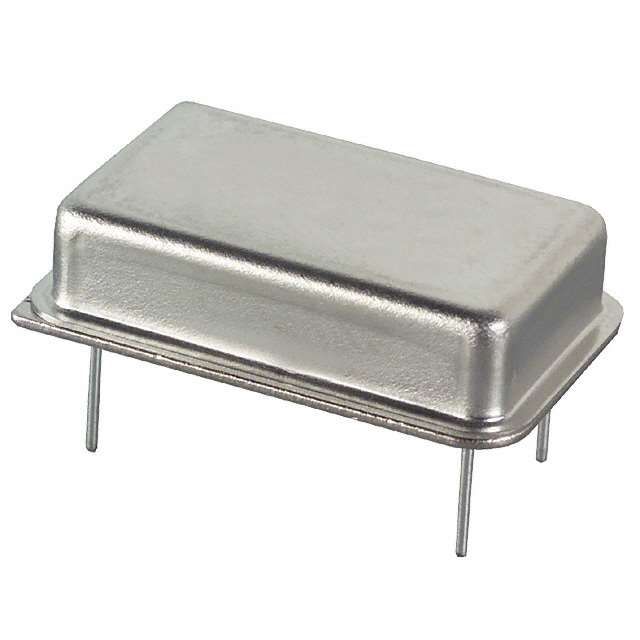

| Component Housing Style | 14-DIP, 4 Leads (Full Size, Metal Can) | |
| Vendor Package Type | - | |
| Package Size Specs | 0.821" L x 0.520" W (20.86mm x 13.20mm) | |
| Maximum Mounted Height | 0.200" (5.08mm) |
Description
Incorporates a Crystal base resonator to maintain stable frequency control. Manages the maximum supply current noted as 70mA. Runs at a frequency of 30 MHz. Offers ±100ppm frequency consistency under various environmental conditions. Maximum installed height of 0.200" (5.08mm) for components affixed to the board. Mounting configuration Through Hole for structural stability. Temperature range 0°C ~ 70°C for environmental conditions impacting thermal efficiency. Output format TTL for electrical or signal communication. Type of housing Bulk for safeguarding or transporting components. Style of the enclosure/case 14-DIP, 4 Leads (Full Size, Metal Can) that offers mechanical and thermal protection. Product status Active concerning availability and lifecycle. Classification series for the product or component ECS-100X. Details on package size 0.821" L x 0.520" W (20.86mm x 13.20mm) for electrical or mechanical components. Measurement dimensions 0.821" L x 0.520" W (20.86mm x 13.20mm) for component specifications. Voltage requirement 5V for electrical specifications. Type classification XO (Standard) for specifications. Voltage supply 5V for device operation.
