Stock:
Distributor: 108
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 1,331.44000 | ₹ 1,331.44 |
| 22 | ₹ 1,019.94000 | ₹ 22,438.68 |
| 264 | ₹ 970.10000 | ₹ 2,56,106.40 |
| 506 | ₹ 932.72000 | ₹ 4,71,956.32 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | DS | |
| IC Encapsulation Type | Tube | |
| Availability Status | Active | |
| Fundamental Oscillator | Crystal | |
| Device Type Classification | TCXO | |
| Oscillation Rate Hz | 32.768 kHz | |
| Primary Function Mode | - | |
| Signal Output Format | CMOS | |
| Power Supply Voltage | 5V | |
| Oscillator Drift Tolerance | ±7.5ppm | |
| Full Pull Frequency Range | - | |
| Ambient Temp Range | 0°C ~ 70°C | |
| Frequency Spread Range | - | |
| Maximum Supply Current | 220µA | |
| Performance Rating Specs | - | |
| Attachment Mounting Style | Through Hole | |

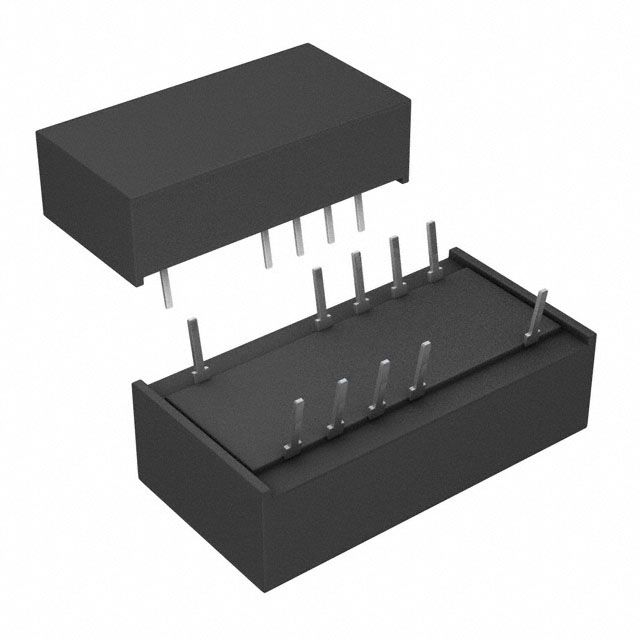

| Component Housing Style | 14-DIP Module | |
| Vendor Package Type | 14-DIP Module | |
| Package Size Specs | 0.860" L x 0.460" W (21.84mm x 11.68mm) | |
| Maximum Mounted Height | 0.315" (8.01mm) |
Description
Incorporates a Crystal base resonator to maintain stable frequency control. Manages the maximum supply current noted as 220µA. Runs at a frequency of 32.768 kHz. Offers ±7.5ppm frequency consistency under various environmental conditions. Maximum installed height of 0.315" (8.01mm) for components affixed to the board. Mounting configuration Through Hole for structural stability. Temperature range 0°C ~ 70°C for environmental conditions impacting thermal efficiency. Output format CMOS for electrical or signal communication. Type of housing Tube for safeguarding or transporting components. Style of the enclosure/case 14-DIP Module that offers mechanical and thermal protection. Type of package 14-DIP Module that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Classification series for the product or component DS. Details on package size 0.860" L x 0.460" W (21.84mm x 11.68mm) for electrical or mechanical components. Measurement dimensions 0.860" L x 0.460" W (21.84mm x 11.68mm) for component specifications. Supplier package type 14-DIP Module for component selection. Voltage requirement 5V for electrical specifications. Type classification TCXO for specifications. Voltage supply 5V for device operation.
