Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | ASTMHT | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Obsolete | |
| Fundamental Oscillator | MEMS | |
| Device Type Classification | XO (Standard) | |
| Oscillation Rate Hz | 25 MHz | |
| Primary Function Mode | Enable/Disable | |
| Signal Output Format | LVCMOS | |
| Power Supply Voltage | 2.25V ~ 3.63V | |
| Oscillator Drift Tolerance | ±20ppm | |
| Full Pull Frequency Range | - | |
| Ambient Temp Range | -55°C ~ 125°C | |
| Frequency Spread Range | - | |
| Maximum Supply Current | - | |
| Performance Rating Specs | - | |
| Attachment Mounting Style | Surface Mount | |

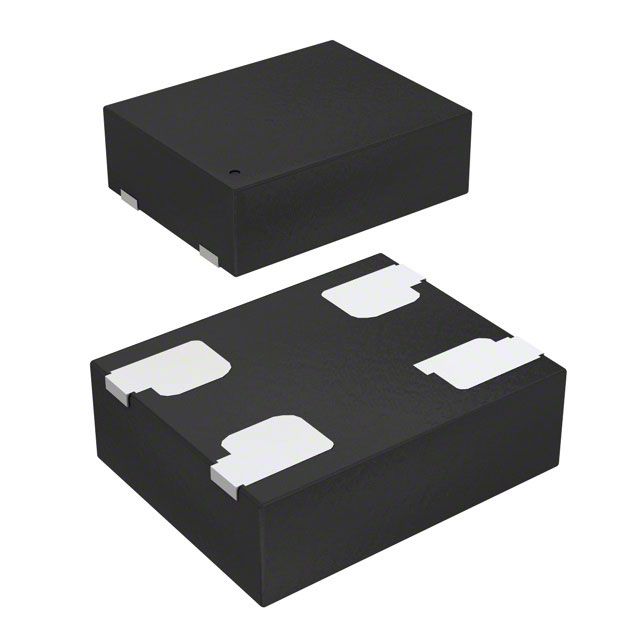

| Component Housing Style | 4-SMD, No Lead | |
| Vendor Package Type | 4-SMD (2.5x2) | |
| Package Size Specs | 0.098" L x 0.079" W (2.50mm x 2.00mm) | |
| Maximum Mounted Height | 0.031" (0.80mm) |
Description
Incorporates a MEMS base resonator to maintain stable frequency control. Runs at a frequency of 25 MHz. Offers ±20ppm frequency consistency under various environmental conditions. Engineered with Enable/Disable features for versatile component usage. Maximum installed height of 0.031" (0.80mm) for components affixed to the board. Mounting configuration Surface Mount for structural stability. Temperature range -55°C ~ 125°C for environmental conditions impacting thermal efficiency. Output format LVCMOS for electrical or signal communication. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case 4-SMD, No Lead that offers mechanical and thermal protection. Type of package 4-SMD (2.5x2) that preserves the integrity of the device. Product status Obsolete concerning availability and lifecycle. Classification series for the product or component ASTMHT. Details on package size 0.098" L x 0.079" W (2.50mm x 2.00mm) for electrical or mechanical components. Measurement dimensions 0.098" L x 0.079" W (2.50mm x 2.00mm) for component specifications. Supplier package type 4-SMD (2.5x2) for component selection. Voltage requirement 2.25V ~ 3.63V for electrical specifications. Type classification XO (Standard) for specifications. Voltage supply 2.25V ~ 3.63V for device operation.
