Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |

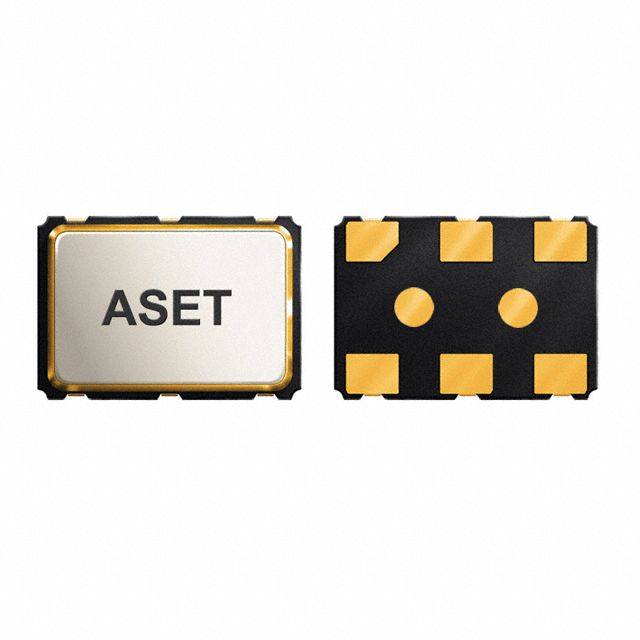

| Product Series Line | ASET | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Obsolete | |
| Fundamental Oscillator | Crystal | |
| Device Type Classification | XO (Standard) | |
| Oscillation Rate Hz | 8 MHz | |
| Primary Function Mode | Enable/Disable | |
| Signal Output Format | CMOS | |
| Power Supply Voltage | 3V | |
| Oscillator Drift Tolerance | ±10ppm | |
| Full Pull Frequency Range | - | |
| Ambient Temp Range | -40°C ~ 85°C | |
| Frequency Spread Range | - | |
| Maximum Supply Current | 7mA | |
| Performance Rating Specs | - | |
| Attachment Mounting Style | Surface Mount | |
| Component Housing Style | 6-SMD, No Lead | |
| Vendor Package Type | 6-SMD (3.2x2.5) | |
| Package Size Specs | 0.126" L x 0.098" W (3.20mm x 2.50mm) | |
| Maximum Mounted Height | 0.039" (1.00mm) |
Description
Incorporates a Crystal base resonator to maintain stable frequency control. Manages the maximum supply current noted as 7mA. Runs at a frequency of 8 MHz. Offers ±10ppm frequency consistency under various environmental conditions. Engineered with Enable/Disable features for versatile component usage. Maximum installed height of 0.039" (1.00mm) for components affixed to the board. Mounting configuration Surface Mount for structural stability. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Output format CMOS for electrical or signal communication. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case 6-SMD, No Lead that offers mechanical and thermal protection. Type of package 6-SMD (3.2x2.5) that preserves the integrity of the device. Product status Obsolete concerning availability and lifecycle. Classification series for the product or component ASET. Details on package size 0.126" L x 0.098" W (3.20mm x 2.50mm) for electrical or mechanical components. Measurement dimensions 0.126" L x 0.098" W (3.20mm x 2.50mm) for component specifications. Supplier package type 6-SMD (3.2x2.5) for component selection. Voltage requirement 3V for electrical specifications. Type classification XO (Standard) for specifications. Voltage supply 3V for device operation.
