Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | Tariff may apply if shipping to the United States | |
| Product Series Line | - | |
| IC Encapsulation Type | Bag | |
| Availability Status | Obsolete | |

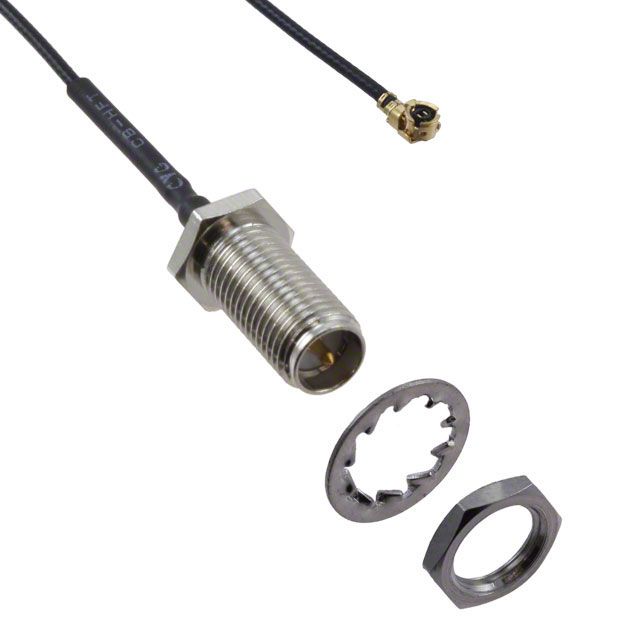

| Design Style Variant | U.FL (UMCC) to RP-SMA | |
| Primary Connector | RP-SMA Jack | |
| Primary Contact Gender | Male | |
| Primary Connector Installation Type | Panel Mount | |
| Primary Connector Mount Style | Bulkhead - Front Side Nut | |
| Secondary Connector | U.FL (UMCC) Plug, Right Angle | |
| Secondary Contact Gender | Female | |
| Secondary Connector Installation Type | Free Hanging (In-Line) | |
| Secondary Connector Mount Style | - | |
| Linear Length Dimension | 7.874" (200.00mm) | |
| Cord Construction Style | 1.13mm OD Coaxial Cable | |
| Transmission Line Resistance | - | |
| Plug Resistance Level | - | |
| Total Circuit Impedance | 50 Ohms | |
| Upper Frequency Limit | 6 GHz | |
| Visual Hue | Black | |
| Key Product Highlights | Shielded | |
| Ambient Temp Range | -40°C ~ 90°C | |
| Dust Water Resistance Rating | - | |
| Quality Grade Level | - | |
| Certification Qualification | - |
Description
Incorporates a primary connector designed to meet RP-SMA Jack requirements. Offers a Bulkhead - Front Side Nut mounting style for firmly securing the primary connector. Adopts a Panel Mount installation technique to guarantee a strong connector setup. Configured with Male contact gender to facilitate effective interface interaction. Fitted with a secondary connector designed to U.FL (UMCC) Plug, Right Angle standards. Utilizes a Free Hanging (In-Line) installation technique for dependable secondary connection. Specifies Female as the gender for the contact to ensure proper interface compatibility. Classified under cable type 1.13mm OD Coaxial Cable for suitable use. Assesses resistance at forward current Tariff may apply if shipping to the United States for LED or diode testing. Offered in a shade referred to as Black to enhance the system's aesthetics. Equipped with features categorized as Shielded. Delivers a peak frequency of 6 GHz. Overall length 7.874" (200.00mm) for size indication. Temperature range -40°C ~ 90°C for environmental conditions impacting thermal efficiency. Overall impedance 50 Ohms for electrical integration. Type of housing Bag for safeguarding or transporting components. Product status Obsolete concerning availability and lifecycle. Style variant U.FL (UMCC) to RP-SMA for design or arrangement. The classification for import duties Tariff may apply if shipping to the United States related to import and export transactions. Maximum Vce(on) at Vge Tariff may apply if shipping to the United States for transistor specifications.
