Description

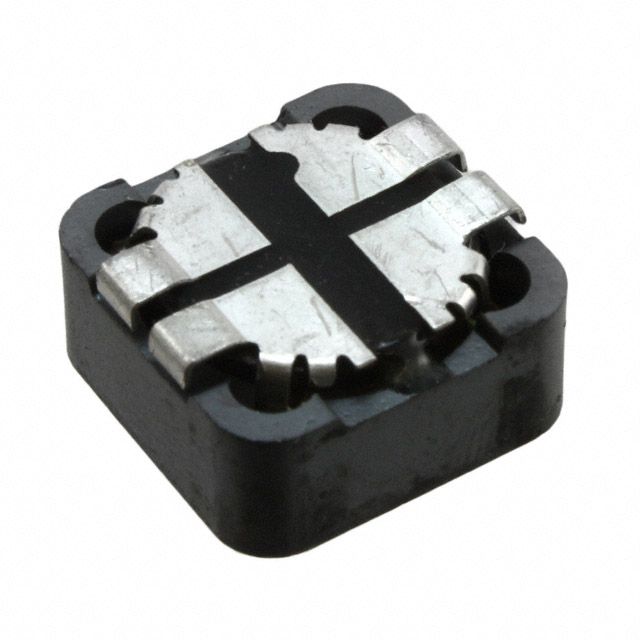

Assesses resistance at forward current Tariff may apply if shipping to the United States for LED or diode testing. Allows for a parallel current rating modified to 5.35 A. Shows a series current rating denoted as 2.67 A. Includes a parallel saturation current rated at 7.17 A. Shows a series saturation current defined as 3.59 A. Delivers parallel DCR capabilities rated at 18.9mOhm. Shows series DCR capabilities rated at 75.7mOhm. Features a height of 0.236" (6.00mm) for accurate dimensional precision. Shows 9.654 µH inductance when set up in parallel for flexible design options. Offers 38.62 µH inductance when arranged in series for effective circuit control. Mounting configuration Surface Mount for structural stability. The total number of coils amounts to 2 for inductive or motor applications. Temperature range -40°C ~ 125°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case Nonstandard that offers mechanical and thermal protection. Product status Active concerning availability and lifecycle. Classification series for the product or component DRQ. Shielding Shielded for EMI/RFI protection. Details on package size 0.492" L x 0.492" W (12.50mm x 12.50mm) for electrical or mechanical components. Measurement dimensions 0.492" L x 0.492" W (12.50mm x 12.50mm) for component specifications. The classification for import duties Tariff may apply if shipping to the United States related to import and export transactions. Precision tolerance level ±20% in manufacturing processes. Maximum Vce(on) at Vge Tariff may apply if shipping to the United States for transistor specifications.
