Description

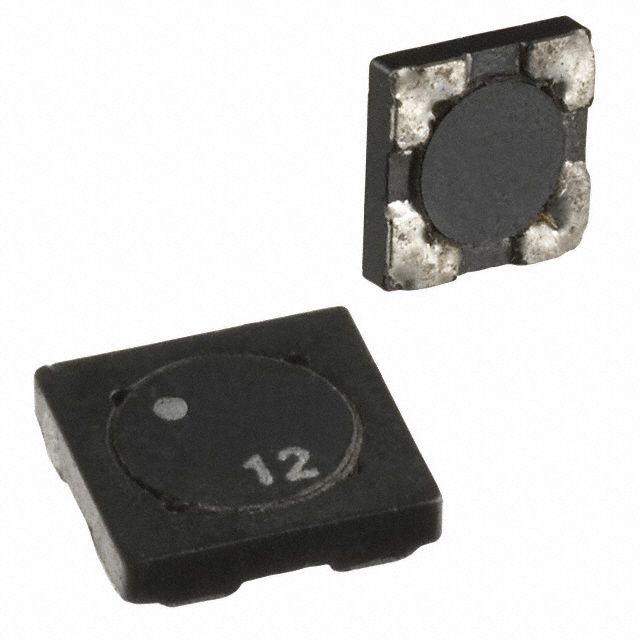

Allows for a parallel current rating modified to 1.12 A. Shows a series current rating denoted as 560 mA. Includes a parallel saturation current rated at 1.45 A. Shows a series saturation current defined as 724 mA. Delivers parallel DCR capabilities rated at 199mOhm. Shows series DCR capabilities rated at 795.9mOhm. Features a height of 0.047" (1.19mm) for accurate dimensional precision. Shows 4.41 µH inductance when set up in parallel for flexible design options. Offers 17.64 µH inductance when arranged in series for effective circuit control. Mounting configuration Surface Mount for structural stability. The total number of coils amounts to 2 for inductive or motor applications. Temperature range -40°C ~ 125°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case Nonstandard that offers mechanical and thermal protection. Product status Active concerning availability and lifecycle. Classification series for the product or component SDQ. Shielding Shielded for EMI/RFI protection. Details on package size 0.205" L x 0.205" W (5.20mm x 5.20mm) for electrical or mechanical components. Measurement dimensions 0.205" L x 0.205" W (5.20mm x 5.20mm) for component specifications. Precision tolerance level ±20% in manufacturing processes.
