Stock:
Distributor: 110
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1100 | ₹ 154.86000 | ₹ 1,70,346.00 |
| 825 | ₹ 157.53000 | ₹ 1,29,962.25 |
| 550 | ₹ 199.36000 | ₹ 1,09,648.00 |
| 275 | ₹ 323.96000 | ₹ 89,089.00 |
Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1100 | ₹ 168.69000 | ₹ 1,85,559.00 |
Stock:
Distributor: 114
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1100 | ₹ 197.58000 | ₹ 2,17,338.00 |

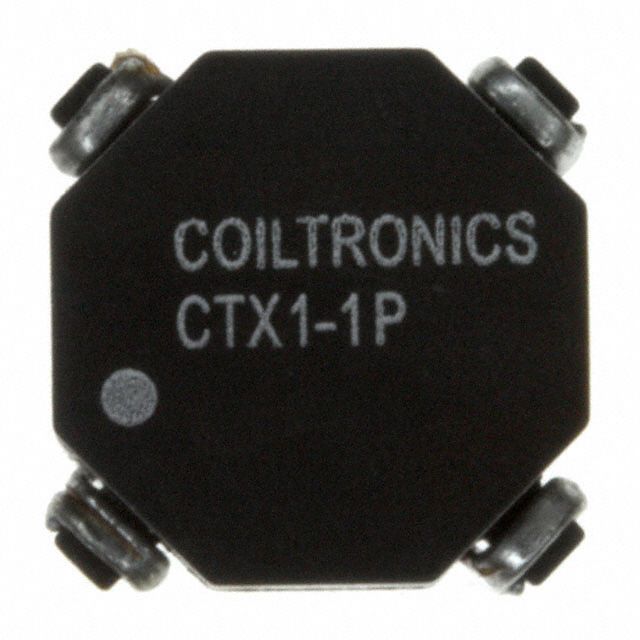

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | Econo-Pac™ | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Active | |
| Inductor Coil Quantity | 2 | |
| Parallel Inductance Rating | 1.07 µH | |
| Series Inductance Rating | 4.28 µH | |
| Accuracy Tolerance Percentage | ±20% | |
| Parallel Circuit Amps | 4.5 A | |
| Series Circuit Amps | 2.25 A | |
| Parallel Saturation Amps | - | |
| Series Saturation Amps | - | |
| Parallel DC Resistance | 8mOhm Max | |
| Series DC Resistance | 32mOhm Max | |
| Electromagnetic Interference Protection | Unshielded | |
| Performance Rating Specs | - | |
| Ambient Temp Range | -40°C ~ 85°C | |
| Attachment Mounting Style | Surface Mount | |
| Component Housing Style | Nonstandard | |
| Package Size Specs | 0.450" L x 0.450" W (11.43mm x 11.43mm) | |
| Vertical Dimension | 0.165" (4.19mm) |
Description
Allows for a parallel current rating modified to 4.5 A. Shows a series current rating denoted as 2.25 A. Delivers parallel DCR capabilities rated at 8mOhm Max. Shows series DCR capabilities rated at 32mOhm Max. Features a height of 0.165" (4.19mm) for accurate dimensional precision. Shows 1.07 µH inductance when set up in parallel for flexible design options. Offers 4.28 µH inductance when arranged in series for effective circuit control. Mounting configuration Surface Mount for structural stability. The total number of coils amounts to 2 for inductive or motor applications. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case Nonstandard that offers mechanical and thermal protection. Product status Active concerning availability and lifecycle. Classification series for the product or component Econo-Pac™. Shielding Unshielded for EMI/RFI protection. Details on package size 0.450" L x 0.450" W (11.43mm x 11.43mm) for electrical or mechanical components. Measurement dimensions 0.450" L x 0.450" W (11.43mm x 11.43mm) for component specifications. Precision tolerance level ±20% in manufacturing processes.
