Stock:
Distributor: 122
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 3000 | ₹ 35.07000 | ₹ 1,05,210.00 |
| 1000 | ₹ 35.67000 | ₹ 35,670.00 |
| 500 | ₹ 36.27000 | ₹ 18,135.00 |
| 250 | ₹ 36.86000 | ₹ 9,215.00 |
| 100 | ₹ 37.46000 | ₹ 3,746.00 |
| 50 | ₹ 38.06000 | ₹ 1,903.00 |
| 25 | ₹ 38.65000 | ₹ 966.25 |
| 10 | ₹ 39.25000 | ₹ 392.50 |
| 1 | ₹ 39.85000 | ₹ 39.85 |

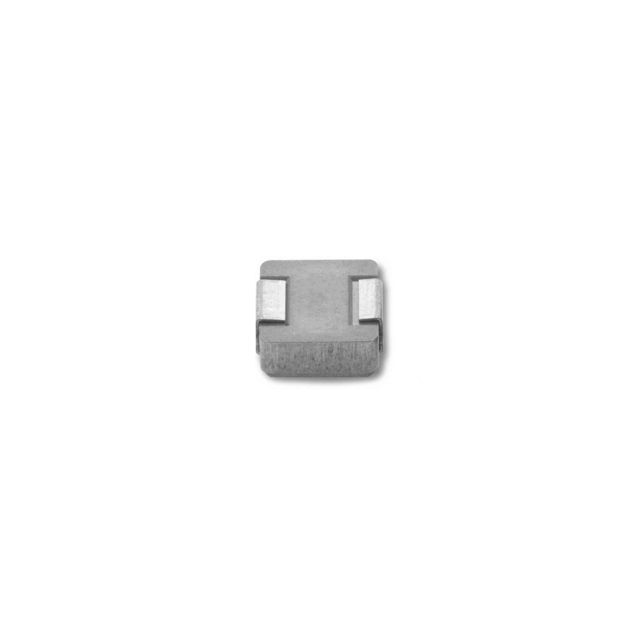

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | Tariff may apply if shipping to the United States | |
| Product Series Line | IHLP-2525CZ-01 | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Obsolete | |
| Device Type Classification | Molded | |
| Inductor Core Type | - | |
| Coil Inductance Value | 100 nH | |
| Accuracy Tolerance Percentage | ±30% | |
| Ampere Capacity Rating | 32.5 A | |
| Saturation Current Level | 60A | |
| Electromagnetic Interference Protection | Shielded | |
| Direct Current Resistance | 1.7mOhm Max | |
| Quality Factor at Frequency | - | |
| Self-Resonance Frequency | 400MHz | |
| Performance Rating Specs | - | |
| Ambient Temp Range | -55°C ~ 125°C | |
| Test Frequency for Inductance | 100 kHz | |
| Key Product Highlights | - | |
| Attachment Mounting Style | Surface Mount | |
| Component Housing Style | Nonstandard | |
| Vendor Package Type | - | |
| Package Size Specs | 0.270" L x 0.255" W (6.86mm x 6.47mm) | |
| Maximum Mounted Height | 0.118" (3.00mm) |
Description
Assesses resistance at forward current Tariff may apply if shipping to the United States for LED or diode testing. Supports saturation current indicated at 60A. Displays Isat saturation current noted at 60A. Sets the ampere rating to 32.5 A. Provides a DC resistance measurement of 1.7mOhm Max for accurate circuit operation. Features a 400MHz self-resonant frequency that enhances component efficiency. Enables a 100 kHz frequency during testing to guarantee accurate device validation. Maximum installed height of 0.118" (3.00mm) for components affixed to the board. Provides 100 nH inductance for circuit tuning and filtering. Assessed for inductance at 100 kHz frequency to verify component reliability. Mounting configuration Surface Mount for structural stability. Temperature range -55°C ~ 125°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case Nonstandard that offers mechanical and thermal protection. Product status Obsolete concerning availability and lifecycle. Classification series for the product or component IHLP-2525CZ-01. Shielding Shielded for EMI/RFI protection. Details on package size 0.270" L x 0.255" W (6.86mm x 6.47mm) for electrical or mechanical components. Measurement dimensions 0.270" L x 0.255" W (6.86mm x 6.47mm) for component specifications. The classification for import duties Tariff may apply if shipping to the United States related to import and export transactions. Precision tolerance level ±30% in manufacturing processes. Type classification Molded for specifications. Maximum Vce(on) at Vge Tariff may apply if shipping to the United States for transistor specifications.
