Description

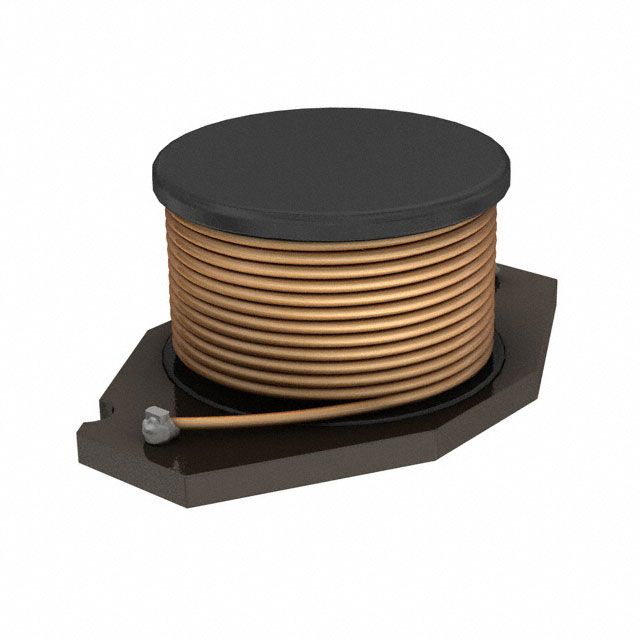

Sets the ampere rating to 4.6 A. Provides a DC resistance measurement of 40mOhm Max for accurate circuit operation. Enables a 100 kHz frequency during testing to guarantee accurate device validation. Maximum installed height of 0.232" (5.90mm) for components affixed to the board. Provides 10 µH inductance for circuit tuning and filtering. Assessed for inductance at 100 kHz frequency to verify component reliability. Substance Ferrite to achieve optimal electromagnetic efficiency. Mounting configuration Surface Mount for structural stability. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Bulk for safeguarding or transporting components. Style of the enclosure/case Nonstandard that offers mechanical and thermal protection. Type of package SMD that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Classification series for the product or component AX97. Shielding Unshielded for EMI/RFI protection. Details on package size 0.530" L x 0.370" W (13.46mm x 9.40mm) for electrical or mechanical components. Measurement dimensions 0.530" L x 0.370" W (13.46mm x 9.40mm) for component specifications. Supplier package type SMD for component selection. Precision tolerance level ±20% in manufacturing processes. Type classification Drum Core, Wirewound for specifications.
