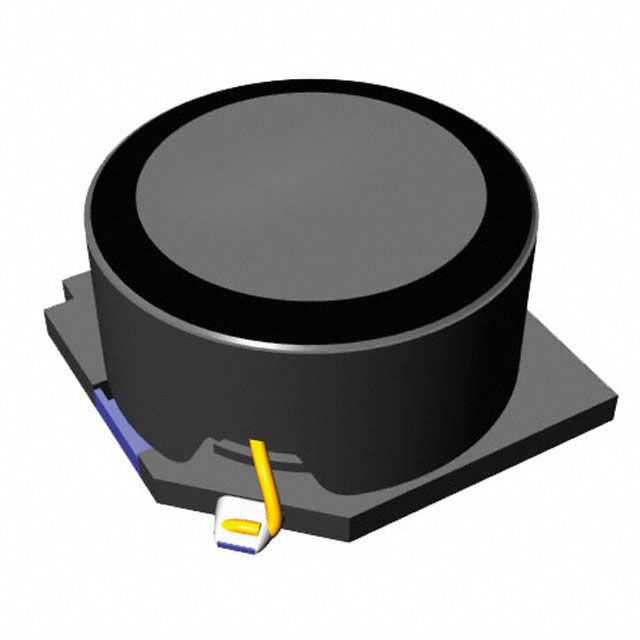

Description

Supports saturation current indicated at 6.96A. Displays Isat saturation current noted at 6.96A. Sets the ampere rating to 4.75 A. Provides a DC resistance measurement of 23.88mOhm Max for accurate circuit operation. Features a 15.8MHz self-resonant frequency that enhances component efficiency. Enables a 100 kHz frequency during testing to guarantee accurate device validation. Maximum installed height of 0.270" (6.85mm) for components affixed to the board. Provides 10 µH inductance for circuit tuning and filtering. Assessed for inductance at 100 kHz frequency to verify component reliability. Substance Ferrite to achieve optimal electromagnetic efficiency. Mounting configuration Surface Mount for structural stability. Temperature range -40°C ~ 125°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case Nonstandard that offers mechanical and thermal protection. Product status Active concerning availability and lifecycle. Classification series for the product or component NS. Shielding Shielded for EMI/RFI protection. Details on package size 0.492" L x 0.492" W (12.50mm x 12.50mm) for electrical or mechanical components. Measurement dimensions 0.492" L x 0.492" W (12.50mm x 12.50mm) for component specifications. Precision tolerance level ±20% in manufacturing processes. Type classification Drum Core, Wirewound for specifications.
