Description

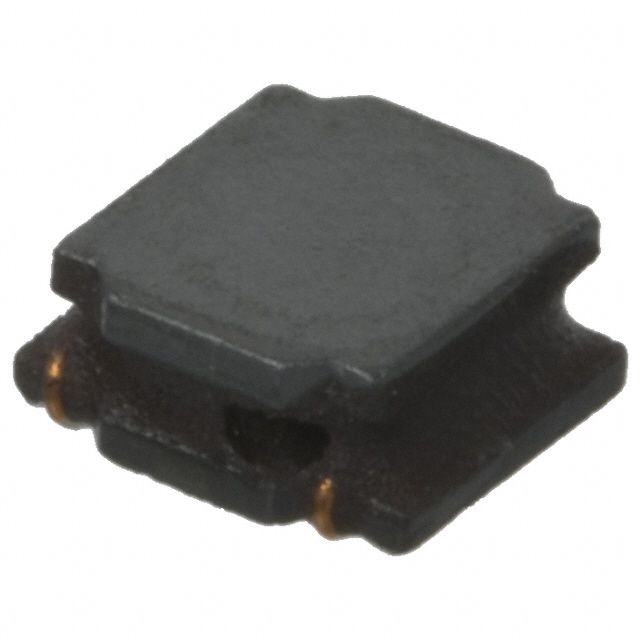

Supports saturation current indicated at 1.02A. Displays Isat saturation current noted at 1.02A. Sets the ampere rating to 1.04 A. Provides a DC resistance measurement of 144mOhm Max for accurate circuit operation. Features a 40MHz self-resonant frequency that enhances component efficiency. Enables a 100 kHz frequency during testing to guarantee accurate device validation. Maximum installed height of 0.059" (1.50mm) for components affixed to the board. Provides 4.7 µH inductance for circuit tuning and filtering. Assessed for inductance at 100 kHz frequency to verify component reliability. Substance Ferrite to achieve optimal electromagnetic efficiency. Mounting configuration Surface Mount for structural stability. Temperature range -25°C ~ 120°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case Nonstandard that offers mechanical and thermal protection. Product status Last Time Buy concerning availability and lifecycle. Classification series for the product or component NR. Shielding Semi-Shielded for EMI/RFI protection. Details on package size 0.118" L x 0.118" W (3.00mm x 3.00mm) for electrical or mechanical components. Measurement dimensions 0.118" L x 0.118" W (3.00mm x 3.00mm) for component specifications. Precision tolerance level ±20% in manufacturing processes. Type classification Drum Core, Wirewound for specifications.
