Description

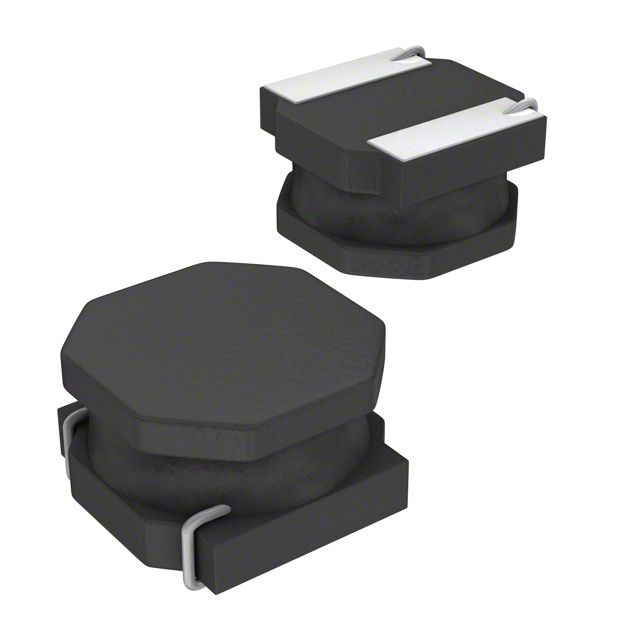

Supports saturation current indicated at 2.9A. Displays Isat saturation current noted at 2.9A. Sets the ampere rating to 1.9 A. Provides a DC resistance measurement of 64mOhm Max for accurate circuit operation. Enables a 1 MHz frequency during testing to guarantee accurate device validation. Maximum installed height of 0.047" (1.20mm) for components affixed to the board. Provides 1 µH inductance for circuit tuning and filtering. Assessed for inductance at 1 MHz frequency to verify component reliability. Substance Metal to achieve optimal electromagnetic efficiency. Mounting configuration Surface Mount for structural stability. Temperature range -40°C ~ 125°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case Nonstandard that offers mechanical and thermal protection. Product status Active concerning availability and lifecycle. Criteria AEC-Q200 for electrical, mechanical, or environmental performance. Classification series for the product or component MCOIL™, MD. Shielding Shielded for EMI/RFI protection. Details on package size 0.079" L x 0.079" W (2.00mm x 2.00mm) for electrical or mechanical components. Measurement dimensions 0.079" L x 0.079" W (2.00mm x 2.00mm) for component specifications. Precision tolerance level ±20% in manufacturing processes. Type classification Drum Core, Wirewound for specifications.
