Description

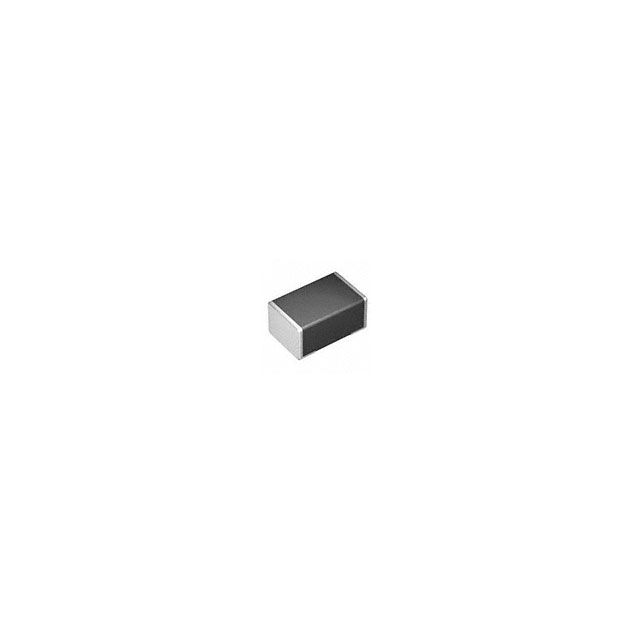

Supports saturation current indicated at 2A. Displays Isat saturation current noted at 2A. Sets the ampere rating to 1.3 A. Provides a DC resistance measurement of 123mOhm Max for accurate circuit operation. Enables a 1 MHz frequency during testing to guarantee accurate device validation. Maximum installed height of 0.039" (1.00mm) for components affixed to the board. Provides 1 µH inductance for circuit tuning and filtering. Assessed for inductance at 1 MHz frequency to verify component reliability. Substance Metal to achieve optimal electromagnetic efficiency. Mounting configuration Surface Mount for structural stability. Temperature range -40°C ~ 125°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 0603 (1608 Metric) that offers mechanical and thermal protection. Type of package 0603 (1608 Metric) that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Classification series for the product or component MCOIL™, MC. Shielding Shielded for EMI/RFI protection. Details on package size 0.063" L x 0.031" W (1.60mm x 0.80mm) for electrical or mechanical components. Measurement dimensions 0.063" L x 0.031" W (1.60mm x 0.80mm) for component specifications. Supplier package type 0603 (1608 Metric) for component selection. Precision tolerance level ±20% in manufacturing processes. Type classification Multilayer for specifications.
