Description

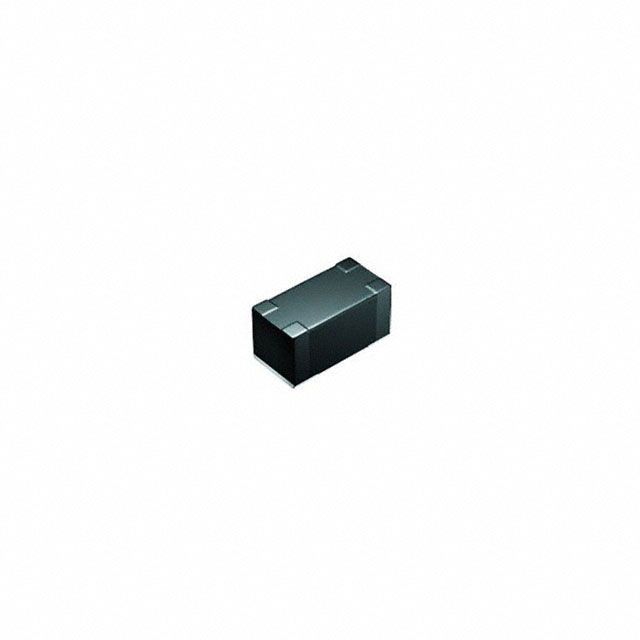

Supports saturation current indicated at 1.1A. Displays Isat saturation current noted at 1.1A. Sets the ampere rating to 1 A. Provides a DC resistance measurement of 143mOhm Max for accurate circuit operation. Features a 350MHz self-resonant frequency that enhances component efficiency. Enables a 1 MHz frequency during testing to guarantee accurate device validation. Maximum installed height of 0.055" (1.40mm) for components affixed to the board. Provides 2.2 µH inductance for circuit tuning and filtering. Assessed for inductance at 1 MHz frequency to verify component reliability. Substance Ferrite to achieve optimal electromagnetic efficiency. Mounting configuration Surface Mount for structural stability. Temperature range -40°C ~ 105°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 0805 (2012 Metric) that offers mechanical and thermal protection. Type of package 0805 (2012 Metric) that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Classification series for the product or component BR, C Type. Shielding Semi-Shielded for EMI/RFI protection. Details on package size 0.079" L x 0.049" W (2.00mm x 1.25mm) for electrical or mechanical components. Measurement dimensions 0.079" L x 0.049" W (2.00mm x 1.25mm) for component specifications. Supplier package type 0805 (2012 Metric) for component selection. Precision tolerance level ±20% in manufacturing processes. Type classification Drum Core, Wirewound for specifications.
