Description

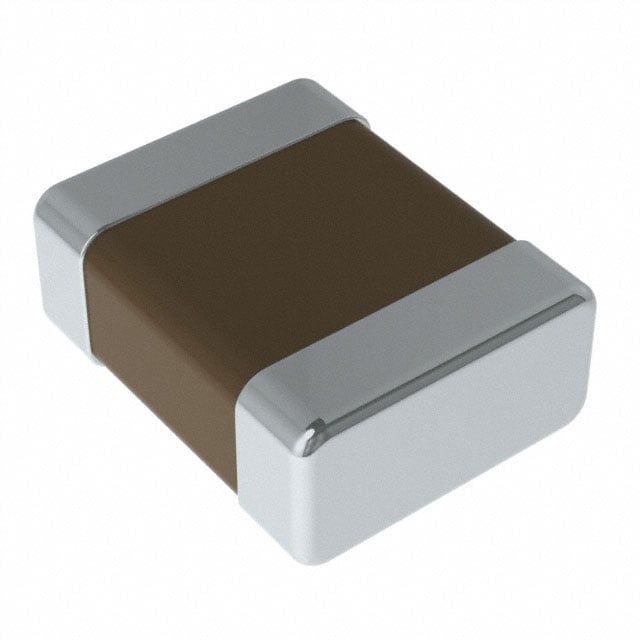

Assesses resistance at forward current Tariff may apply if shipping to the United States for LED or diode testing. Supports saturation current indicated at 5A. Displays Isat saturation current noted at 5A. Sets the ampere rating to 4.1 A. Provides a DC resistance measurement of 30mOhm Max for accurate circuit operation. Enables a 1 MHz frequency during testing to guarantee accurate device validation. Maximum installed height of 0.039" (1.00mm) for components affixed to the board. Provides 1 µH inductance for circuit tuning and filtering. Assessed for inductance at 1 MHz frequency to verify component reliability. Substance Metal Composite to achieve optimal electromagnetic efficiency. Mounting configuration Surface Mount for structural stability. Temperature range -40°C ~ 125°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 1008 (2520 Metric) that offers mechanical and thermal protection. Type of package 1008 (2520 Metric) that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Classification series for the product or component CIGT. Shielding Shielded for EMI/RFI protection. Details on package size 0.098" L x 0.079" W (2.50mm x 2.00mm) for electrical or mechanical components. Measurement dimensions 0.098" L x 0.079" W (2.50mm x 2.00mm) for component specifications. Supplier package type 1008 (2520 Metric) for component selection. The classification for import duties Tariff may apply if shipping to the United States related to import and export transactions. Precision tolerance level ±20% in manufacturing processes. Type classification Thin Film for specifications. Maximum Vce(on) at Vge Tariff may apply if shipping to the United States for transistor specifications.
