Description

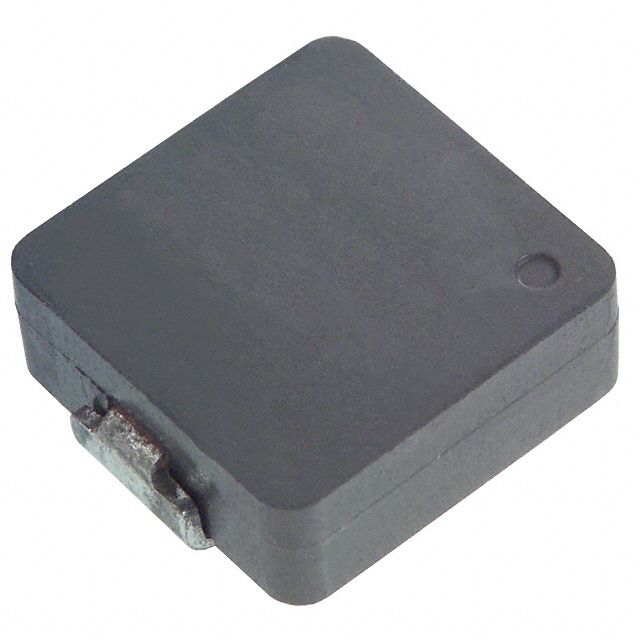

Sets the ampere rating to 21 A. Provides a DC resistance measurement of 1.56mOhm for accurate circuit operation. Enables a 100 kHz frequency during testing to guarantee accurate device validation. Maximum installed height of 0.157" (4.00mm) for components affixed to the board. Provides 560 nH inductance for circuit tuning and filtering. Assessed for inductance at 100 kHz frequency to verify component reliability. Substance Metal Composite to achieve optimal electromagnetic efficiency. Mounting configuration Surface Mount for structural stability. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 2-SMD, J-Lead that offers mechanical and thermal protection. Product status Not For New Designs concerning availability and lifecycle. Classification series for the product or component PCC-M1040L (MC). Shielding Shielded for EMI/RFI protection. Details on package size 0.453" L x 0.394" W (11.50mm x 10.00mm) for electrical or mechanical components. Measurement dimensions 0.453" L x 0.394" W (11.50mm x 10.00mm) for component specifications. Precision tolerance level ±20% in manufacturing processes. Type classification Drum Core, Wirewound for specifications.
