Description

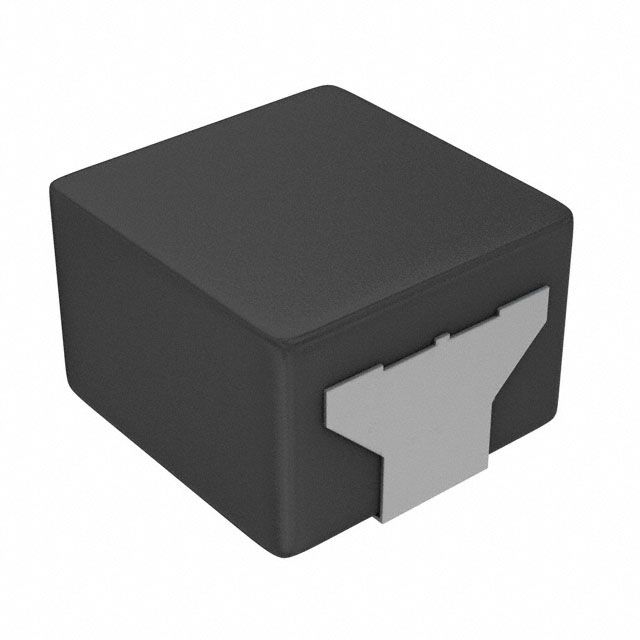

Supports saturation current indicated at 21.8A. Displays Isat saturation current noted at 21.8A. Sets the ampere rating to 12.7 A. Provides a DC resistance measurement of 5.3mOhm Max for accurate circuit operation. Enables a 100 kHz frequency during testing to guarantee accurate device validation. Maximum installed height of 0.118" (3.00mm) for components affixed to the board. Provides 330 nH inductance for circuit tuning and filtering. Assessed for inductance at 100 kHz frequency to verify component reliability. Substance Metal Composite to achieve optimal electromagnetic efficiency. Mounting configuration Surface Mount for structural stability. Temperature range -55°C ~ 155°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 2-SMD, J-Lead that offers mechanical and thermal protection. Product status Active concerning availability and lifecycle. Criteria AEC-Q200 for electrical, mechanical, or environmental performance. Classification series for the product or component PCC-M0530M-LP. Shielding Shielded for EMI/RFI protection. Details on package size 0.217" L x 0.197" W (5.50mm x 5.00mm) for electrical or mechanical components. Measurement dimensions 0.217" L x 0.197" W (5.50mm x 5.00mm) for component specifications. Precision tolerance level ±20% in manufacturing processes. Type classification Drum Core, Wirewound for specifications.
