Stock:
Distributor: 120
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 268 | ₹ 93.45000 | ₹ 25,044.60 |
| 81 | ₹ 100.13000 | ₹ 8,110.53 |
| 24 | ₹ 166.88000 | ₹ 4,005.12 |
| 8 | ₹ 200.25000 | ₹ 1,602.00 |
| 2 | ₹ 267.00000 | ₹ 534.00 |
Stock:
Distributor: 118
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 215 | ₹ 115.70000 | ₹ 24,875.50 |
| 101 | ₹ 124.60000 | ₹ 12,584.60 |
| 1 | ₹ 356.00000 | ₹ 356.00 |

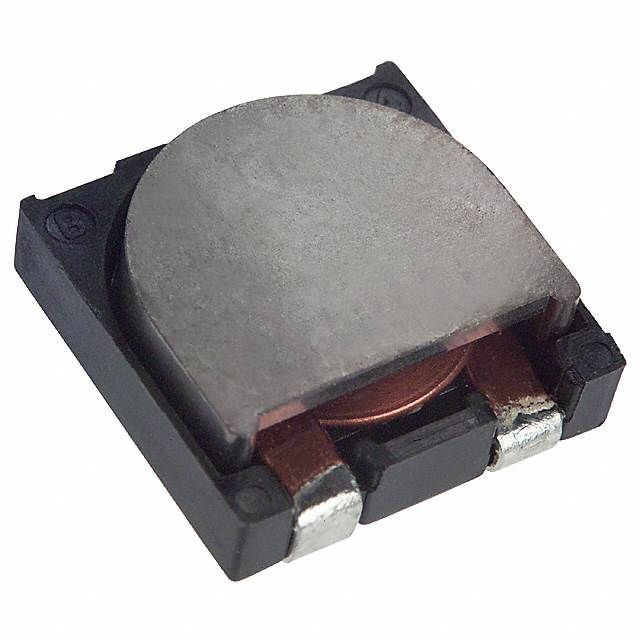

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | PCC-D125H (NX2) | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Obsolete | |
| Device Type Classification | - | |
| Inductor Core Type | Ferrite | |
| Coil Inductance Value | 290 nH | |
| Accuracy Tolerance Percentage | ±20% | |
| Ampere Capacity Rating | 36 A | |
| Saturation Current Level | - | |
| Electromagnetic Interference Protection | Shielded | |
| Direct Current Resistance | 0.54mOhm Max | |
| Quality Factor at Frequency | - | |
| Self-Resonance Frequency | - | |
| Performance Rating Specs | - | |
| Ambient Temp Range | - | |
| Test Frequency for Inductance | 100 kHz | |
| Key Product Highlights | - | |
| Attachment Mounting Style | Surface Mount | |
| Component Housing Style | Nonstandard, 4 Lead | |
| Vendor Package Type | - | |
| Package Size Specs | 0.512" L x 0.508" W (13.00mm x 12.90mm) | |
| Maximum Mounted Height | 0.193" (4.90mm) |
Description
Sets the ampere rating to 36 A. Provides a DC resistance measurement of 0.54mOhm Max for accurate circuit operation. Enables a 100 kHz frequency during testing to guarantee accurate device validation. Maximum installed height of 0.193" (4.90mm) for components affixed to the board. Provides 290 nH inductance for circuit tuning and filtering. Assessed for inductance at 100 kHz frequency to verify component reliability. Substance Ferrite to achieve optimal electromagnetic efficiency. Mounting configuration Surface Mount for structural stability. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case Nonstandard, 4 Lead that offers mechanical and thermal protection. Product status Obsolete concerning availability and lifecycle. Classification series for the product or component PCC-D125H (NX2). Shielding Shielded for EMI/RFI protection. Details on package size 0.512" L x 0.508" W (13.00mm x 12.90mm) for electrical or mechanical components. Measurement dimensions 0.512" L x 0.508" W (13.00mm x 12.90mm) for component specifications. Precision tolerance level ±20% in manufacturing processes.
