Stock:
Distributor: 121
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 5 | ₹ 49.84000 | ₹ 249.20 |
| 50 | ₹ 36.03000 | ₹ 1,801.50 |
| 250 | ₹ 29.65000 | ₹ 7,412.50 |
| 500 | ₹ 29.17000 | ₹ 14,585.00 |
| 1000 | ₹ 28.70000 | ₹ 28,700.00 |
| 2000 | ₹ 28.22000 | ₹ 56,440.00 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |

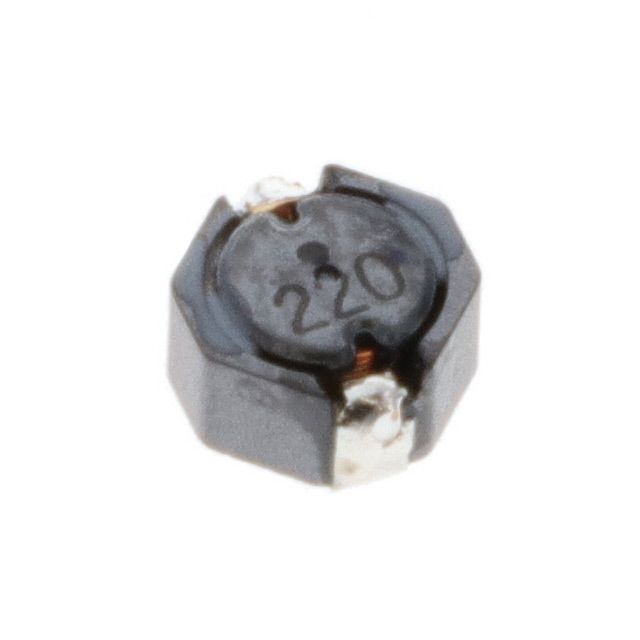

| Product Series Line | D53LC | |
| IC Encapsulation Type | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® | |
| Availability Status | Active | |
| Device Type Classification | Drum Core, Wirewound | |
| Inductor Core Type | Ferrite | |
| Coil Inductance Value | 22 µH | |
| Accuracy Tolerance Percentage | ±20% | |
| Ampere Capacity Rating | 810 mA | |
| Saturation Current Level | 860mA | |
| Electromagnetic Interference Protection | Shielded | |
| Direct Current Resistance | 208mOhm Max | |
| Quality Factor at Frequency | - | |
| Self-Resonance Frequency | - | |
| Performance Rating Specs | - | |
| Ambient Temp Range | -40°C ~ 85°C | |
| Test Frequency for Inductance | 100 kHz | |
| Key Product Highlights | - | |
| Attachment Mounting Style | Surface Mount | |
| Component Housing Style | 2020 (5050 Metric) | |
| Vendor Package Type | 2020 | |
| Package Size Specs | 0.197" L x 0.197" W (5.00mm x 5.00mm) | |
| Maximum Mounted Height | 0.118" (3.00mm) |
Description
Supports saturation current indicated at 860mA. Displays Isat saturation current noted at 860mA. Sets the ampere rating to 810 mA. Provides a DC resistance measurement of 208mOhm Max for accurate circuit operation. Enables a 100 kHz frequency during testing to guarantee accurate device validation. Maximum installed height of 0.118" (3.00mm) for components affixed to the board. Provides 22 µH inductance for circuit tuning and filtering. Assessed for inductance at 100 kHz frequency to verify component reliability. Substance Ferrite to achieve optimal electromagnetic efficiency. Mounting configuration Surface Mount for structural stability. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 2020 (5050 Metric) that offers mechanical and thermal protection. Type of package 2020 that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Classification series for the product or component D53LC. Shielding Shielded for EMI/RFI protection. Details on package size 0.197" L x 0.197" W (5.00mm x 5.00mm) for electrical or mechanical components. Measurement dimensions 0.197" L x 0.197" W (5.00mm x 5.00mm) for component specifications. Supplier package type 2020 for component selection. Precision tolerance level ±20% in manufacturing processes. Type classification Drum Core, Wirewound for specifications.
