Description

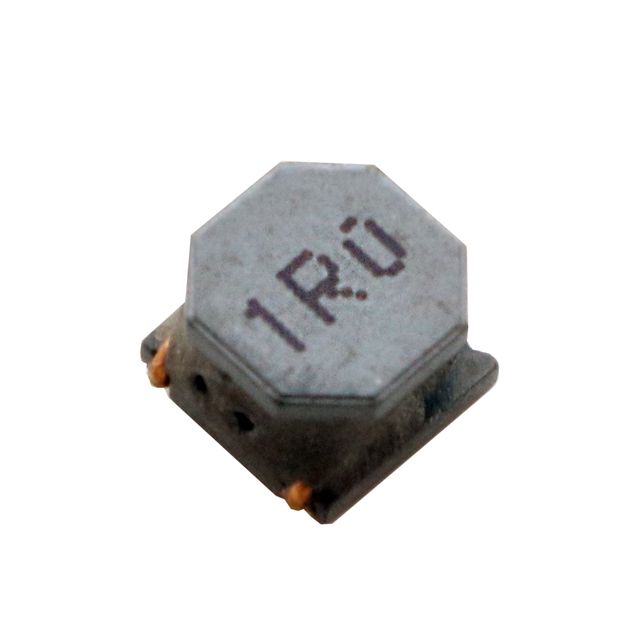

Assesses resistance at forward current Tariff may apply if shipping to the United States for LED or diode testing. Supports saturation current indicated at 7.5A. Displays Isat saturation current noted at 7.5A. Sets the ampere rating to 6 A. Provides a DC resistance measurement of 12mOhm Max for accurate circuit operation. Features a 180MHz self-resonant frequency that enhances component efficiency. Enables a 100 kHz frequency during testing to guarantee accurate device validation. Maximum installed height of 0.118" (3.00mm) for components affixed to the board. Provides 680 nH inductance for circuit tuning and filtering. Assessed for inductance at 100 kHz frequency to verify component reliability. Mounting configuration Surface Mount for structural stability. Temperature range -40°C ~ 125°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 1616 (4040 Metric) that offers mechanical and thermal protection. Type of package 1616 that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Classification series for the product or component MPL-SE. Shielding Shielded for EMI/RFI protection. Details on package size 0.157" L x 0.157" W (4.00mm x 4.00mm) for electrical or mechanical components. Measurement dimensions 0.157" L x 0.157" W (4.00mm x 4.00mm) for component specifications. Supplier package type 1616 for component selection. The classification for import duties Tariff may apply if shipping to the United States related to import and export transactions. Precision tolerance level ±20% in manufacturing processes. Maximum Vce(on) at Vge Tariff may apply if shipping to the United States for transistor specifications.
