Description

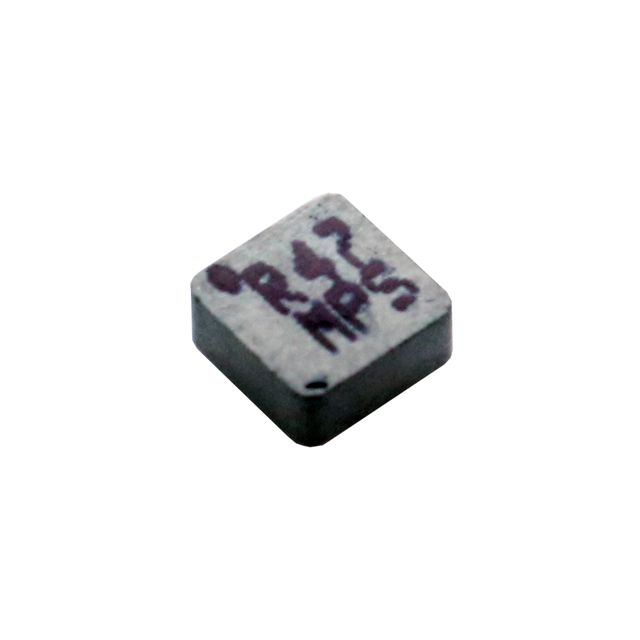

Assesses resistance at forward current Tariff may apply if shipping to the United States for LED or diode testing. Supports saturation current indicated at 8.6A. Displays Isat saturation current noted at 8.6A. Sets the ampere rating to 7.9 A. Provides a DC resistance measurement of 10.1mOhm for accurate circuit operation. Enables a 100 kHz frequency during testing to guarantee accurate device validation. Maximum installed height of 0.083" (2.10mm) for components affixed to the board. Provides 1 µH inductance for circuit tuning and filtering. Assessed for inductance at 100 kHz frequency to verify component reliability. Mounting configuration Surface Mount for structural stability. Temperature range -40°C ~ 155°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 2-SMD that offers mechanical and thermal protection. Product status Active concerning availability and lifecycle. Classification series for the product or component MPL-AL. Shielding Unshielded for EMI/RFI protection. Details on package size 0.161" L x 0.161" W (4.10mm x 4.10mm) for electrical or mechanical components. Measurement dimensions 0.161" L x 0.161" W (4.10mm x 4.10mm) for component specifications. The classification for import duties Tariff may apply if shipping to the United States related to import and export transactions. Type classification Molded for specifications. Maximum Vce(on) at Vge Tariff may apply if shipping to the United States for transistor specifications.
