Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 200 | ₹ 1,725.38000 | ₹ 3,45,076.00 |
| 100 | ₹ 1,750.65000 | ₹ 1,75,065.00 |
| 10 | ₹ 2,111.82000 | ₹ 21,118.20 |
| 1 | ₹ 2,535.36000 | ₹ 2,535.36 |

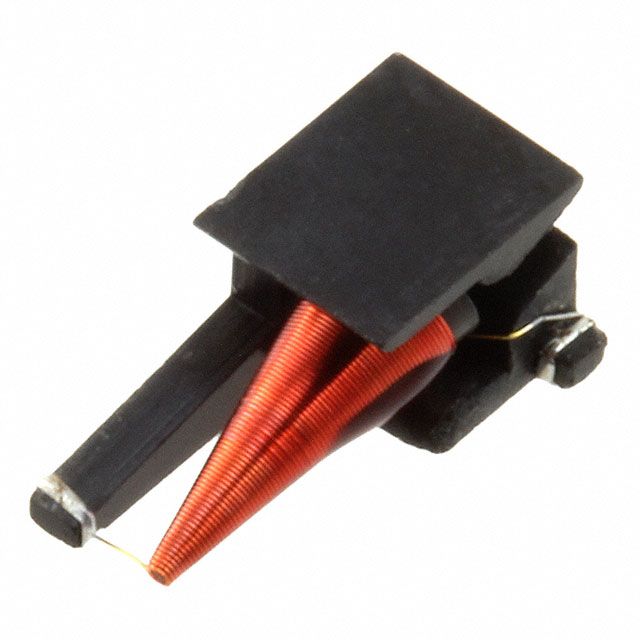

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | 506WLS | |
| IC Encapsulation Type | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® | |
| Availability Status | Active | |
| Device Type Classification | Drum Core, Wirewound | |
| Inductor Core Type | Iron Powder | |
| Coil Inductance Value | 2 µH | |
| Accuracy Tolerance Percentage | ±10% | |
| Ampere Capacity Rating | 494 mA | |
| Saturation Current Level | - | |
| Electromagnetic Interference Protection | Unshielded | |
| Direct Current Resistance | 650mOhm | |
| Quality Factor at Frequency | - | |
| Self-Resonance Frequency | - | |
| Performance Rating Specs | - | |
| Ambient Temp Range | -55°C ~ 125°C | |
| Test Frequency for Inductance | 1 MHz | |
| Key Product Highlights | - | |
| Attachment Mounting Style | Surface Mount | |
| Component Housing Style | Nonstandard | |
| Vendor Package Type | - | |
| Package Size Specs | 0.245" L x 0.133" W (6.22mm x 3.38mm) | |
| Maximum Mounted Height | 0.117" (2.97mm) |
Description
Sets the ampere rating to 494 mA. Provides a DC resistance measurement of 650mOhm for accurate circuit operation. Enables a 1 MHz frequency during testing to guarantee accurate device validation. Maximum installed height of 0.117" (2.97mm) for components affixed to the board. Provides 2 µH inductance for circuit tuning and filtering. Assessed for inductance at 1 MHz frequency to verify component reliability. Substance Iron Powder to achieve optimal electromagnetic efficiency. Mounting configuration Surface Mount for structural stability. Temperature range -55°C ~ 125°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case Nonstandard that offers mechanical and thermal protection. Product status Active concerning availability and lifecycle. Classification series for the product or component 506WLS. Shielding Unshielded for EMI/RFI protection. Details on package size 0.245" L x 0.133" W (6.22mm x 3.38mm) for electrical or mechanical components. Measurement dimensions 0.245" L x 0.133" W (6.22mm x 3.38mm) for component specifications. Precision tolerance level ±10% in manufacturing processes. Type classification Drum Core, Wirewound for specifications.
