Stock:
Distributor: 111
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 100 | ₹ 946.25000 | ₹ 94,625.00 |
| 1 | ₹ 1,228.91000 | ₹ 1,228.91 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | PFC | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Active | |

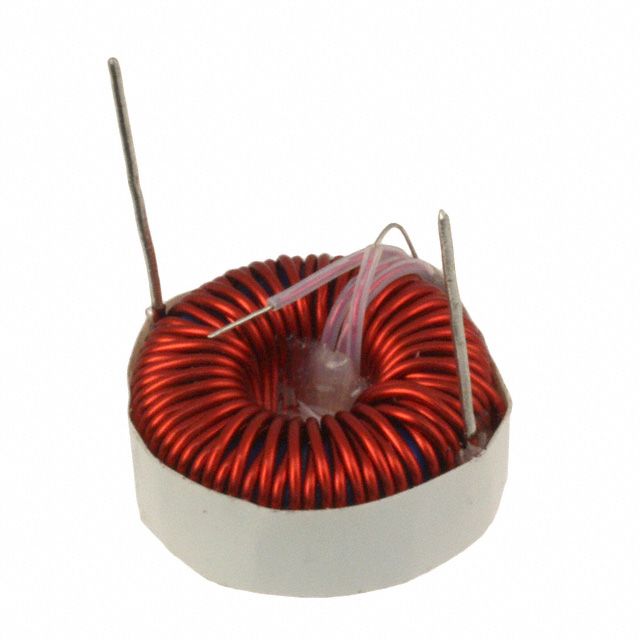

| Device Type Classification | Toroidal | |
| Inductor Core Type | - | |
| Coil Inductance Value | 769 µH | |
| Accuracy Tolerance Percentage | - | |
| Ampere Capacity Rating | 2.6 A | |
| Saturation Current Level | - | |
| Electromagnetic Interference Protection | Unshielded | |
| Direct Current Resistance | 31mOhm Max | |
| Quality Factor at Frequency | - | |
| Self-Resonance Frequency | - | |
| Performance Rating Specs | - | |
| Ambient Temp Range | -20°C ~ 105°C | |
| Test Frequency for Inductance | 100 kHz | |
| Key Product Highlights | - | |
| Attachment Mounting Style | Through Hole | |
| Component Housing Style | Radial, Horizontal (Open) | |
| Vendor Package Type | - | |
| Package Size Specs | 1.350" Dia (34.29mm) | |
| Maximum Mounted Height | 0.720" (18.29mm) |
Description
Sets the ampere rating to 2.6 A. Provides a DC resistance measurement of 31mOhm Max for accurate circuit operation. Enables a 100 kHz frequency during testing to guarantee accurate device validation. Maximum installed height of 0.720" (18.29mm) for components affixed to the board. Provides 769 µH inductance for circuit tuning and filtering. Assessed for inductance at 100 kHz frequency to verify component reliability. Mounting configuration Through Hole for structural stability. Temperature range -20°C ~ 105°C for environmental conditions impacting thermal efficiency. Type of housing Bulk for safeguarding or transporting components. Style of the enclosure/case Radial, Horizontal (Open) that offers mechanical and thermal protection. Product status Active concerning availability and lifecycle. Classification series for the product or component PFC. Shielding Unshielded for EMI/RFI protection. Details on package size 1.350" Dia (34.29mm) for electrical or mechanical components. Measurement dimensions 1.350" Dia (34.29mm) for component specifications. Type classification Toroidal for specifications.
