Stock:
Distributor: 110
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 15400 | ₹ 65.15000 | ₹ 10,03,310.00 |
| 10450 | ₹ 87.22000 | ₹ 9,11,449.00 |
| 7700 | ₹ 89.80000 | ₹ 6,91,460.00 |
| 5500 | ₹ 91.14000 | ₹ 5,01,270.00 |
| 2750 | ₹ 93.63000 | ₹ 2,57,482.50 |
| 1100 | ₹ 97.63000 | ₹ 1,07,393.00 |
| 550 | ₹ 101.99000 | ₹ 56,094.50 |
Stock:
Distributor: 114
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 550 | ₹ 95.23000 | ₹ 52,376.50 |
| 1100 | ₹ 92.56000 | ₹ 1,01,816.00 |
Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 550 | ₹ 104.16000 | ₹ 57,288.00 |

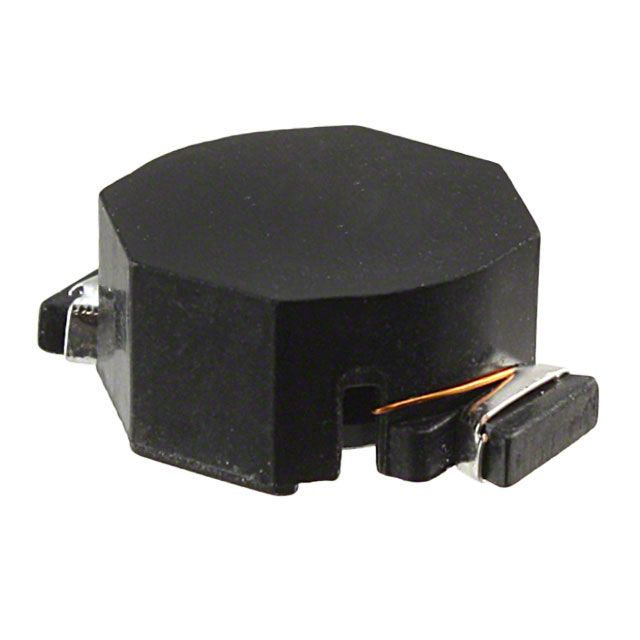

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | UNI-PAC™ | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Active | |
| Device Type Classification | Drum Core, Wirewound | |
| Inductor Core Type | Ferrite | |
| Coil Inductance Value | 820 µH | |
| Accuracy Tolerance Percentage | ±20% | |
| Ampere Capacity Rating | 423 mA | |
| Saturation Current Level | 334mA | |
| Electromagnetic Interference Protection | Unshielded | |
| Direct Current Resistance | 2.24Ohm Max | |
| Quality Factor at Frequency | - | |
| Self-Resonance Frequency | - | |
| Performance Rating Specs | - | |
| Ambient Temp Range | -40°C ~ 85°C | |
| Test Frequency for Inductance | 100 kHz | |
| Key Product Highlights | - | |
| Attachment Mounting Style | Surface Mount | |
| Component Housing Style | Nonstandard | |
| Vendor Package Type | - | |
| Package Size Specs | 0.550" L x 0.410" W (13.97mm x 10.41mm) | |
| Maximum Mounted Height | 0.236" (6.00mm) |
Description
Supports saturation current indicated at 334mA. Displays Isat saturation current noted at 334mA. Sets the ampere rating to 423 mA. Provides a DC resistance measurement of 2.24Ohm Max for accurate circuit operation. Enables a 100 kHz frequency during testing to guarantee accurate device validation. Maximum installed height of 0.236" (6.00mm) for components affixed to the board. Provides 820 µH inductance for circuit tuning and filtering. Assessed for inductance at 100 kHz frequency to verify component reliability. Substance Ferrite to achieve optimal electromagnetic efficiency. Mounting configuration Surface Mount for structural stability. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case Nonstandard that offers mechanical and thermal protection. Product status Active concerning availability and lifecycle. Classification series for the product or component UNI-PAC™. Shielding Unshielded for EMI/RFI protection. Details on package size 0.550" L x 0.410" W (13.97mm x 10.41mm) for electrical or mechanical components. Measurement dimensions 0.550" L x 0.410" W (13.97mm x 10.41mm) for component specifications. Precision tolerance level ±20% in manufacturing processes. Type classification Drum Core, Wirewound for specifications.
