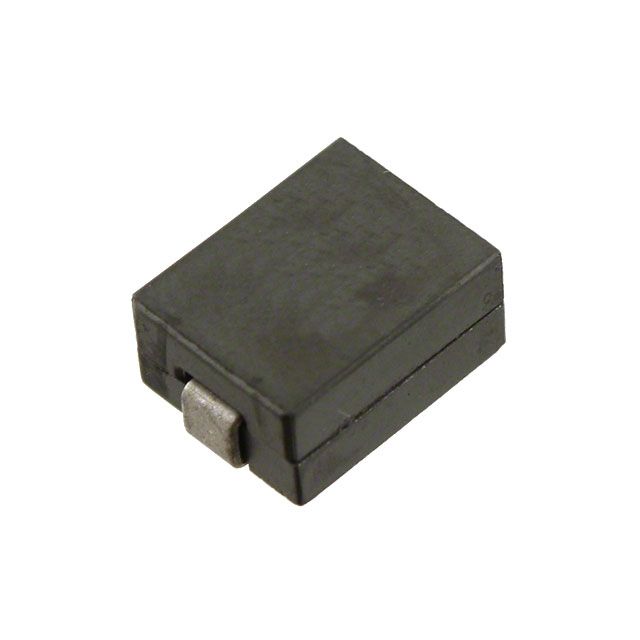

Description

Supports saturation current indicated at 42A. Displays Isat saturation current noted at 42A. Sets the ampere rating to 46 A. Provides a DC resistance measurement of 0.35mOhm for accurate circuit operation. Enables a 100 kHz frequency during testing to guarantee accurate device validation. Maximum installed height of 0.193" (4.90mm) for components affixed to the board. Provides 192 nH inductance for circuit tuning and filtering. Assessed for inductance at 100 kHz frequency to verify component reliability. Substance Ferrite to achieve optimal electromagnetic efficiency. Mounting configuration Surface Mount for structural stability. Temperature range -40°C ~ 125°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case Nonstandard that offers mechanical and thermal protection. Product status Active concerning availability and lifecycle. Classification series for the product or component FLAT-PAC, FP1105. Shielding Unshielded for EMI/RFI protection. Details on package size 0.433" L x 0.315" W (11.00mm x 8.00mm) for electrical or mechanical components. Measurement dimensions 0.433" L x 0.315" W (11.00mm x 8.00mm) for component specifications. Precision tolerance level ±10% in manufacturing processes. Type classification Drum Core, Wirewound for specifications.
