Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 150000 | ₹ 5.64000 | ₹ 8,46,000.00 |
| 75000 | ₹ 5.67000 | ₹ 4,25,250.00 |
| 30000 | ₹ 6.13000 | ₹ 1,83,900.00 |
| 21000 | ₹ 6.31000 | ₹ 1,32,510.00 |
| 15000 | ₹ 6.50000 | ₹ 97,500.00 |
| 9000 | ₹ 6.78000 | ₹ 61,020.00 |
| 6000 | ₹ 7.02000 | ₹ 42,120.00 |
| 3000 | ₹ 7.45000 | ₹ 22,350.00 |
| 1000 | ₹ 8.17000 | ₹ 8,170.00 |
| 100 | ₹ 9.94000 | ₹ 994.00 |
| 10 | ₹ 12.10000 | ₹ 121.00 |
| 1 | ₹ 15.12000 | ₹ 15.12 |

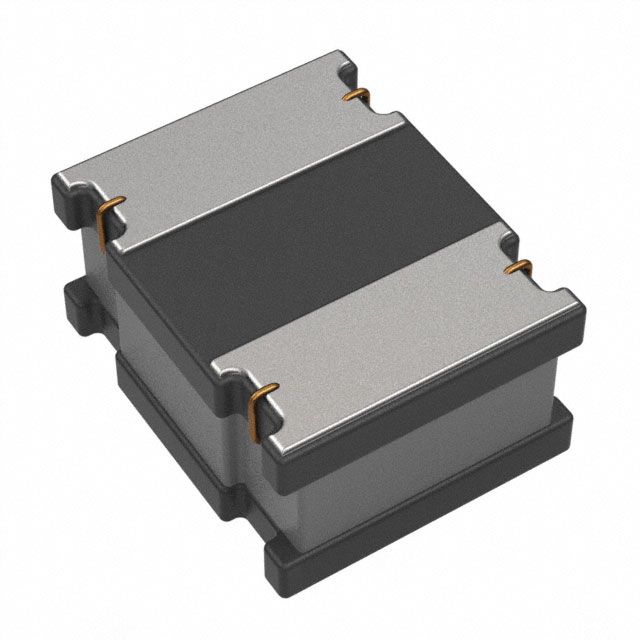

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | SDEM20161T | |
| IC Encapsulation Type | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® | |
| Availability Status | Active | |
| Device Type Classification | - | |
| Inductor Core Type | Metal | |
| Coil Inductance Value | 240 nH | |
| Accuracy Tolerance Percentage | ±20% | |
| Ampere Capacity Rating | 4.5 A | |
| Saturation Current Level | 5.5A | |
| Electromagnetic Interference Protection | Shielded | |
| Direct Current Resistance | 24mOhm Max | |
| Quality Factor at Frequency | - | |
| Self-Resonance Frequency | - | |
| Performance Rating Specs | - | |
| Ambient Temp Range | -55°C ~ 125°C | |
| Test Frequency for Inductance | 1 MHz | |
| Key Product Highlights | - | |
| Attachment Mounting Style | Surface Mount | |
| Component Housing Style | 0806 (2016 Metric) | |
| Vendor Package Type | 2016 | |
| Package Size Specs | 0.079" L x 0.063" W (2.00mm x 1.60mm) | |
| Maximum Mounted Height | 0.039" (1.00mm) |
Description
Supports saturation current indicated at 5.5A. Displays Isat saturation current noted at 5.5A. Sets the ampere rating to 4.5 A. Provides a DC resistance measurement of 24mOhm Max for accurate circuit operation. Enables a 1 MHz frequency during testing to guarantee accurate device validation. Maximum installed height of 0.039" (1.00mm) for components affixed to the board. Provides 240 nH inductance for circuit tuning and filtering. Assessed for inductance at 1 MHz frequency to verify component reliability. Substance Metal to achieve optimal electromagnetic efficiency. Mounting configuration Surface Mount for structural stability. Temperature range -55°C ~ 125°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 0806 (2016 Metric) that offers mechanical and thermal protection. Type of package 2016 that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Classification series for the product or component SDEM20161T. Shielding Shielded for EMI/RFI protection. Details on package size 0.079" L x 0.063" W (2.00mm x 1.60mm) for electrical or mechanical components. Measurement dimensions 0.079" L x 0.063" W (2.00mm x 1.60mm) for component specifications. Supplier package type 2016 for component selection. Precision tolerance level ±20% in manufacturing processes.
