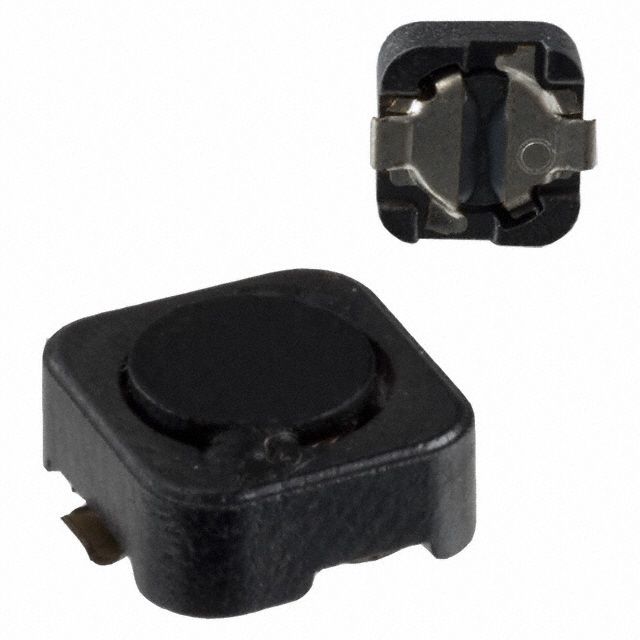

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | SPD62 | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Obsolete | |
| Device Type Classification | Drum Core, Wirewound | |
| Inductor Core Type | Ferrite | |
| Coil Inductance Value | 180 µH | |
| Accuracy Tolerance Percentage | ±20% | |
| Ampere Capacity Rating | 350 mA | |
| Saturation Current Level | 350mA | |
| Electromagnetic Interference Protection | Shielded | |
| Direct Current Resistance | 2.1Ohm Max | |
| Quality Factor at Frequency | - | |
| Self-Resonance Frequency | - | |
| Performance Rating Specs | - | |
| Ambient Temp Range | -55°C ~ 125°C | |
| Test Frequency for Inductance | 1 kHz | |
| Key Product Highlights | - | |
| Attachment Mounting Style | Surface Mount | |
| Component Housing Style | Nonstandard | |
| Vendor Package Type | - | |
| Package Size Specs | 0.260" L x 0.244" W (6.60mm x 6.20mm) | |
| Maximum Mounted Height | 0.118" (3.00mm) |
Description
Supports saturation current indicated at 350mA. Displays Isat saturation current noted at 350mA. Sets the ampere rating to 350 mA. Provides a DC resistance measurement of 2.1Ohm Max for accurate circuit operation. Enables a 1 kHz frequency during testing to guarantee accurate device validation. Maximum installed height of 0.118" (3.00mm) for components affixed to the board. Provides 180 µH inductance for circuit tuning and filtering. Assessed for inductance at 1 kHz frequency to verify component reliability. Substance Ferrite to achieve optimal electromagnetic efficiency. Mounting configuration Surface Mount for structural stability. Temperature range -55°C ~ 125°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case Nonstandard that offers mechanical and thermal protection. Product status Obsolete concerning availability and lifecycle. Classification series for the product or component SPD62. Shielding Shielded for EMI/RFI protection. Details on package size 0.260" L x 0.244" W (6.60mm x 6.20mm) for electrical or mechanical components. Measurement dimensions 0.260" L x 0.244" W (6.60mm x 6.20mm) for component specifications. Precision tolerance level ±20% in manufacturing processes. Type classification Drum Core, Wirewound for specifications.
