Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | S0402 | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Active | |

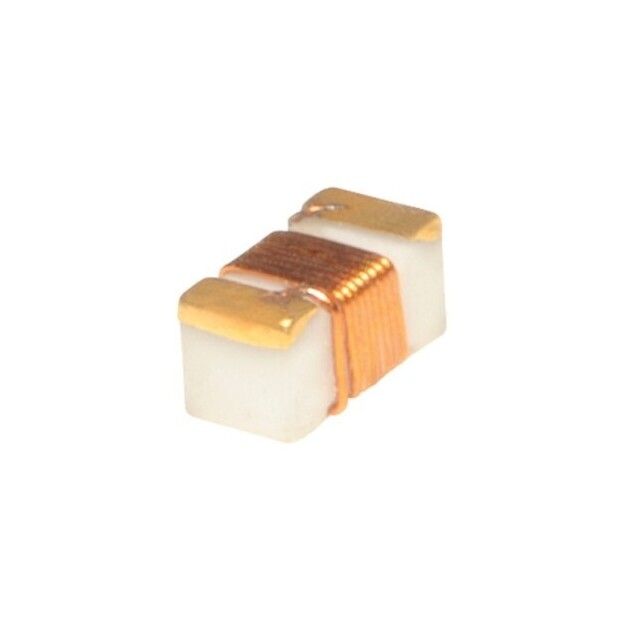

| Device Type Classification | Drum Core, Wirewound | |
| Inductor Core Type | Alumina | |
| Coil Inductance Value | 22 nH | |
| Accuracy Tolerance Percentage | ±5% | |
| Ampere Capacity Rating | 400 mA | |
| Saturation Current Level | - | |
| Electromagnetic Interference Protection | Unshielded | |
| Direct Current Resistance | 350mOhm Max | |
| Quality Factor at Frequency | 24 @ 250MHz | |
| Self-Resonance Frequency | 2.8GHz | |
| Performance Rating Specs | - | |
| Ambient Temp Range | -55°C ~ 125°C | |
| Test Frequency for Inductance | 250 MHz | |
| Key Product Highlights | - | |
| Attachment Mounting Style | Surface Mount | |
| Component Housing Style | 0402 (1005 Metric) | |
| Vendor Package Type | 0402 (1005 Metric) | |
| Package Size Specs | 0.043" L x 0.025" W (1.09mm x 0.64mm) | |
| Maximum Mounted Height | 0.030" (0.76mm) |
Description
Sets the ampere rating to 400 mA. Provides a DC resistance measurement of 350mOhm Max for accurate circuit operation. Features a 2.8GHz self-resonant frequency that enhances component efficiency. Enables a 250 MHz frequency during testing to guarantee accurate device validation. Maximum installed height of 0.030" (0.76mm) for components affixed to the board. Provides 22 nH inductance for circuit tuning and filtering. Assessed for inductance at 250 MHz frequency to verify component reliability. Substance Alumina to achieve optimal electromagnetic efficiency. Mounting configuration Surface Mount for structural stability. Temperature range -55°C ~ 125°C for environmental conditions impacting thermal efficiency. Type of housing Bulk for safeguarding or transporting components. Style of the enclosure/case 0402 (1005 Metric) that offers mechanical and thermal protection. Type of package 0402 (1005 Metric) that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Quality factor at frequency 24 @ 250MHz for resonant systems. Classification series for the product or component S0402. Shielding Unshielded for EMI/RFI protection. Details on package size 0.043" L x 0.025" W (1.09mm x 0.64mm) for electrical or mechanical components. Measurement dimensions 0.043" L x 0.025" W (1.09mm x 0.64mm) for component specifications. Supplier package type 0402 (1005 Metric) for component selection. Precision tolerance level ±5% in manufacturing processes. Type classification Drum Core, Wirewound for specifications.
