Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | LLST | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Obsolete | |

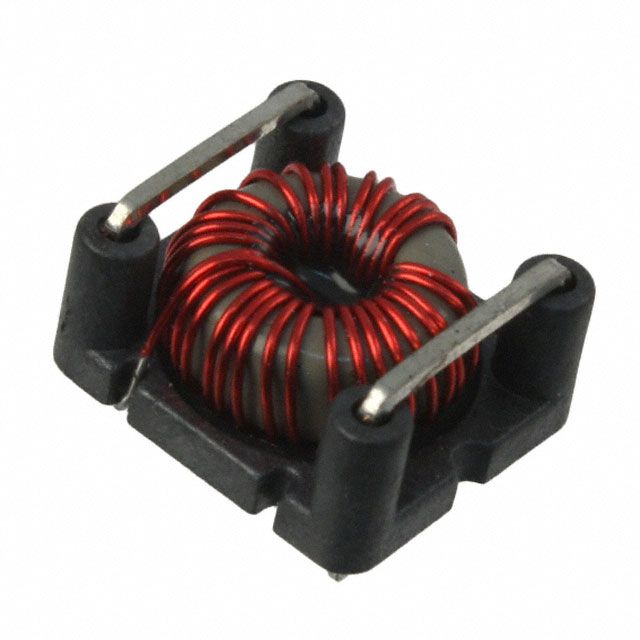

| Device Type Classification | Toroidal | |
| Inductor Core Type | Nickel Iron | |
| Coil Inductance Value | 47 µH | |
| Accuracy Tolerance Percentage | ±15% | |
| Ampere Capacity Rating | 1.45 A | |
| Saturation Current Level | 1A | |
| Electromagnetic Interference Protection | Shielded | |
| Direct Current Resistance | 120mOhm Max | |
| Quality Factor at Frequency | - | |
| Self-Resonance Frequency | 10MHz | |
| Performance Rating Specs | - | |
| Ambient Temp Range | -40°C ~ 125°C | |
| Test Frequency for Inductance | 1 kHz | |
| Key Product Highlights | - | |
| Attachment Mounting Style | Surface Mount | |
| Component Housing Style | Nonstandard | |
| Vendor Package Type | - | |
| Package Size Specs | 0.475" L x 0.420" W (12.07mm x 10.67mm) | |
| Maximum Mounted Height | 0.290" (7.37mm) |
Description
Supports saturation current indicated at 1A. Displays Isat saturation current noted at 1A. Sets the ampere rating to 1.45 A. Provides a DC resistance measurement of 120mOhm Max for accurate circuit operation. Features a 10MHz self-resonant frequency that enhances component efficiency. Enables a 1 kHz frequency during testing to guarantee accurate device validation. Maximum installed height of 0.290" (7.37mm) for components affixed to the board. Provides 47 µH inductance for circuit tuning and filtering. Assessed for inductance at 1 kHz frequency to verify component reliability. Substance Nickel Iron to achieve optimal electromagnetic efficiency. Mounting configuration Surface Mount for structural stability. Temperature range -40°C ~ 125°C for environmental conditions impacting thermal efficiency. Type of housing Bulk for safeguarding or transporting components. Style of the enclosure/case Nonstandard that offers mechanical and thermal protection. Product status Obsolete concerning availability and lifecycle. Classification series for the product or component LLST. Shielding Shielded for EMI/RFI protection. Details on package size 0.475" L x 0.420" W (12.07mm x 10.67mm) for electrical or mechanical components. Measurement dimensions 0.475" L x 0.420" W (12.07mm x 10.67mm) for component specifications. Precision tolerance level ±15% in manufacturing processes. Type classification Toroidal for specifications.
