Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 100 | ₹ 170.90000 | ₹ 17,090.00 |
Stock:
Distributor: 108
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 295.48000 | ₹ 295.48 |
| 10 | ₹ 246.53000 | ₹ 2,465.30 |
| 50 | ₹ 225.17000 | ₹ 11,258.50 |
| 100 | ₹ 177.11000 | ₹ 17,711.00 |
| 200 | ₹ 171.77000 | ₹ 34,354.00 |
| 500 | ₹ 161.09000 | ₹ 80,545.00 |
| 1000 | ₹ 155.75000 | ₹ 1,55,750.00 |
| 2500 | ₹ 150.41000 | ₹ 3,76,025.00 |
| 5000 | ₹ 137.95000 | ₹ 6,89,750.00 |

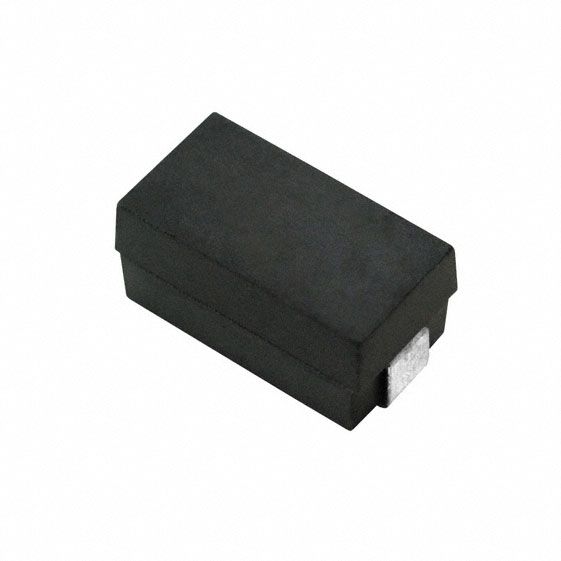

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | P3519R | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Active | |
| Device Type Classification | Drum Core, Wirewound | |
| Inductor Core Type | Ferrite | |
| Coil Inductance Value | 100 nH | |
| Accuracy Tolerance Percentage | ±10% | |
| Ampere Capacity Rating | 5.3 A | |
| Saturation Current Level | 13.6A | |
| Electromagnetic Interference Protection | Unshielded | |
| Direct Current Resistance | 10mOhm Max | |
| Quality Factor at Frequency | - | |
| Self-Resonance Frequency | - | |
| Performance Rating Specs | - | |
| Ambient Temp Range | -55°C ~ 130°C | |
| Test Frequency for Inductance | 10 kHz | |
| Key Product Highlights | - | |
| Attachment Mounting Style | Surface Mount | |
| Component Housing Style | Nonstandard | |
| Vendor Package Type | - | |
| Package Size Specs | 0.358" L x 0.190" W (9.09mm x 4.83mm) | |
| Maximum Mounted Height | 0.185" (4.70mm) |
Description
Supports saturation current indicated at 13.6A. Displays Isat saturation current noted at 13.6A. Sets the ampere rating to 5.3 A. Provides a DC resistance measurement of 10mOhm Max for accurate circuit operation. Enables a 10 kHz frequency during testing to guarantee accurate device validation. Maximum installed height of 0.185" (4.70mm) for components affixed to the board. Provides 100 nH inductance for circuit tuning and filtering. Assessed for inductance at 10 kHz frequency to verify component reliability. Substance Ferrite to achieve optimal electromagnetic efficiency. Mounting configuration Surface Mount for structural stability. Temperature range -55°C ~ 130°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case Nonstandard that offers mechanical and thermal protection. Product status Active concerning availability and lifecycle. Classification series for the product or component P3519R. Shielding Unshielded for EMI/RFI protection. Details on package size 0.358" L x 0.190" W (9.09mm x 4.83mm) for electrical or mechanical components. Measurement dimensions 0.358" L x 0.190" W (9.09mm x 4.83mm) for component specifications. Precision tolerance level ±10% in manufacturing processes. Type classification Drum Core, Wirewound for specifications.
