Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 500 | ₹ 158.29000 | ₹ 79,145.00 |
Stock:
Distributor: 108
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 500 | ₹ 171.77000 | ₹ 85,885.00 |
| 1000 | ₹ 166.43000 | ₹ 1,66,430.00 |
| 2500 | ₹ 160.20000 | ₹ 4,00,500.00 |
Stock:
Distributor: 118
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 8 | ₹ 276.06000 | ₹ 2,208.48 |
| 3 | ₹ 313.71000 | ₹ 941.13 |
| 1 | ₹ 376.44000 | ₹ 376.44 |

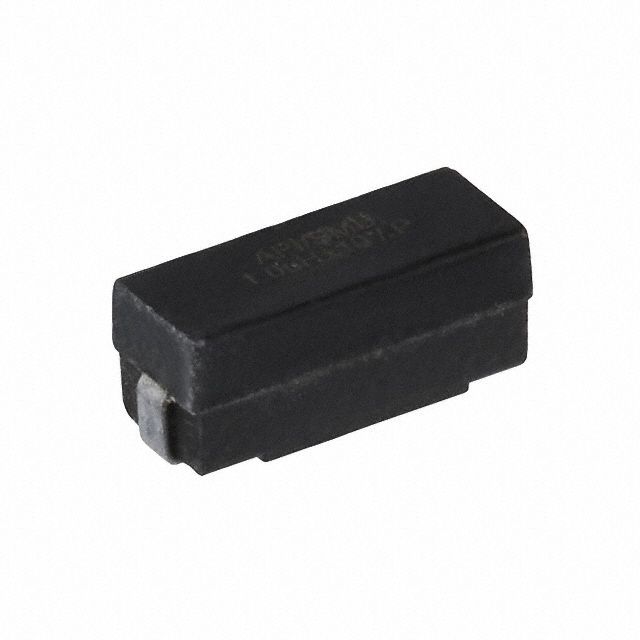

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | P1330 | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Active | |
| Device Type Classification | - | |
| Inductor Core Type | Ferrite | |
| Coil Inductance Value | 1 µH | |
| Accuracy Tolerance Percentage | ±10% | |
| Ampere Capacity Rating | 2.78 A | |
| Saturation Current Level | 1.526A | |
| Electromagnetic Interference Protection | Unshielded | |
| Direct Current Resistance | 35mOhm Max | |
| Quality Factor at Frequency | - | |
| Self-Resonance Frequency | - | |
| Performance Rating Specs | - | |
| Ambient Temp Range | -55°C ~ 125°C | |
| Test Frequency for Inductance | 1 kHz | |
| Key Product Highlights | - | |
| Attachment Mounting Style | Surface Mount | |
| Component Housing Style | Nonstandard | |
| Vendor Package Type | - | |
| Package Size Specs | 0.313" L x 0.115" W (7.94mm x 2.92mm) | |
| Maximum Mounted Height | 0.145" (3.68mm) |
Description
Supports saturation current indicated at 1.526A. Displays Isat saturation current noted at 1.526A. Sets the ampere rating to 2.78 A. Provides a DC resistance measurement of 35mOhm Max for accurate circuit operation. Enables a 1 kHz frequency during testing to guarantee accurate device validation. Maximum installed height of 0.145" (3.68mm) for components affixed to the board. Provides 1 µH inductance for circuit tuning and filtering. Assessed for inductance at 1 kHz frequency to verify component reliability. Substance Ferrite to achieve optimal electromagnetic efficiency. Mounting configuration Surface Mount for structural stability. Temperature range -55°C ~ 125°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case Nonstandard that offers mechanical and thermal protection. Product status Active concerning availability and lifecycle. Classification series for the product or component P1330. Shielding Unshielded for EMI/RFI protection. Details on package size 0.313" L x 0.115" W (7.94mm x 2.92mm) for electrical or mechanical components. Measurement dimensions 0.313" L x 0.115" W (7.94mm x 2.92mm) for component specifications. Precision tolerance level ±10% in manufacturing processes.
