Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 800 | ₹ 214.49000 | ₹ 1,71,592.00 |
Stock:
Distributor: 118
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 91 | ₹ 228.53000 | ₹ 20,796.23 |
| 26 | ₹ 247.06000 | ₹ 6,423.56 |
| 1 | ₹ 370.60000 | ₹ 370.60 |
Stock:
Distributor: 108
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 800 | ₹ 243.86000 | ₹ 1,95,088.00 |
| 2400 | ₹ 216.27000 | ₹ 5,19,048.00 |

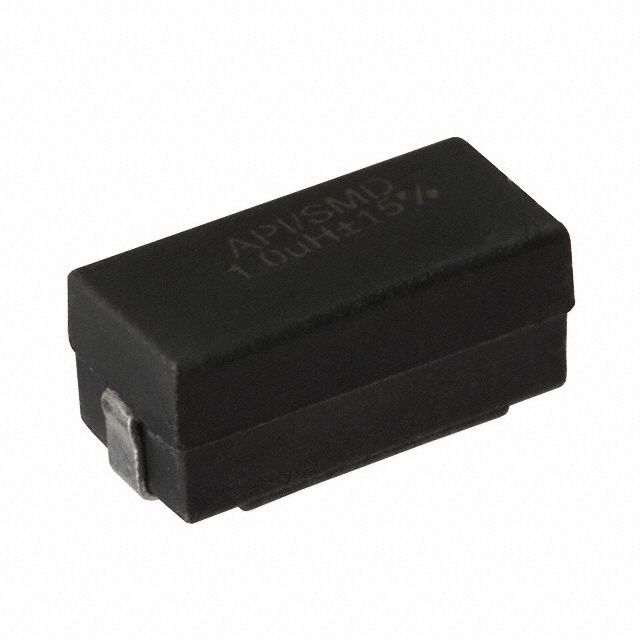

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | 4922 | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Active | |
| Device Type Classification | Drum Core, Wirewound | |
| Inductor Core Type | Ferrite | |
| Coil Inductance Value | 1 µH | |
| Accuracy Tolerance Percentage | ±15% | |
| Ampere Capacity Rating | 5.5 A | |
| Saturation Current Level | 5.5A | |
| Electromagnetic Interference Protection | Unshielded | |
| Direct Current Resistance | 13mOhm Max | |
| Quality Factor at Frequency | - | |
| Self-Resonance Frequency | - | |
| Performance Rating Specs | - | |
| Ambient Temp Range | -55°C ~ 125°C | |
| Test Frequency for Inductance | 1 kHz | |
| Key Product Highlights | - | |
| Attachment Mounting Style | Surface Mount | |
| Component Housing Style | Nonstandard | |
| Vendor Package Type | - | |
| Package Size Specs | 0.505" L x 0.240" W (12.82mm x 6.09mm) | |
| Maximum Mounted Height | 0.230" (5.84mm) |
Description
Supports saturation current indicated at 5.5A. Displays Isat saturation current noted at 5.5A. Sets the ampere rating to 5.5 A. Provides a DC resistance measurement of 13mOhm Max for accurate circuit operation. Enables a 1 kHz frequency during testing to guarantee accurate device validation. Maximum installed height of 0.230" (5.84mm) for components affixed to the board. Provides 1 µH inductance for circuit tuning and filtering. Assessed for inductance at 1 kHz frequency to verify component reliability. Substance Ferrite to achieve optimal electromagnetic efficiency. Mounting configuration Surface Mount for structural stability. Temperature range -55°C ~ 125°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case Nonstandard that offers mechanical and thermal protection. Product status Active concerning availability and lifecycle. Classification series for the product or component 4922. Shielding Unshielded for EMI/RFI protection. Details on package size 0.505" L x 0.240" W (12.82mm x 6.09mm) for electrical or mechanical components. Measurement dimensions 0.505" L x 0.240" W (12.82mm x 6.09mm) for component specifications. Precision tolerance level ±15% in manufacturing processes. Type classification Drum Core, Wirewound for specifications.
