Description

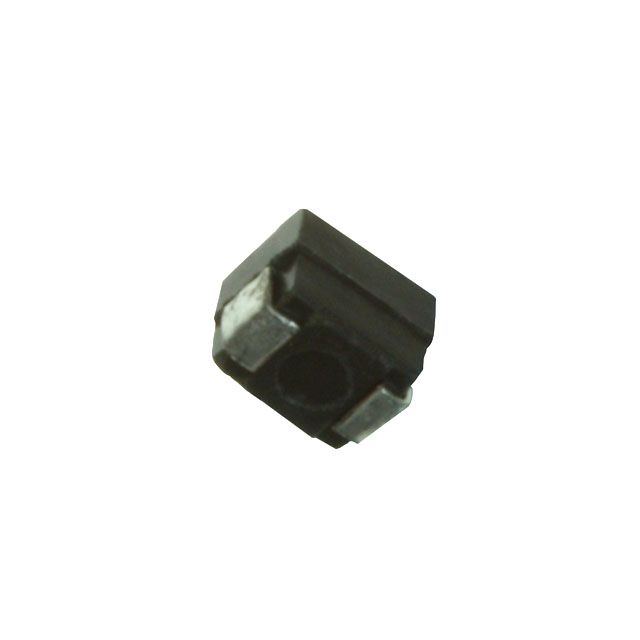

Sets the ampere rating to 1.562 A. Provides a DC resistance measurement of 50mOhm Max for accurate circuit operation. Features a 2.7GHz self-resonant frequency that enhances component efficiency. Enables a 50 MHz frequency during testing to guarantee accurate device validation. Maximum installed height of 0.101" (2.57mm) for components affixed to the board. Provides 1.8 nH inductance for circuit tuning and filtering. Assessed for inductance at 50 MHz frequency to verify component reliability. Substance Phenolic to achieve optimal electromagnetic efficiency. Mounting configuration Surface Mount for structural stability. Temperature range -55°C ~ 125°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case 2-SMD that offers mechanical and thermal protection. Product status Active concerning availability and lifecycle. Quality factor at frequency 40 @ 50MHz for resonant systems. Classification series for the product or component 1210R. Shielding Unshielded for EMI/RFI protection. Details on package size 0.128" L x 0.095" W (3.26mm x 2.41mm) for electrical or mechanical components. Measurement dimensions 0.128" L x 0.095" W (3.26mm x 2.41mm) for component specifications. Precision tolerance level ±5% in manufacturing processes.
