Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | ATCA | |
| IC Encapsulation Type | Tray | |
| Availability Status | Active | |

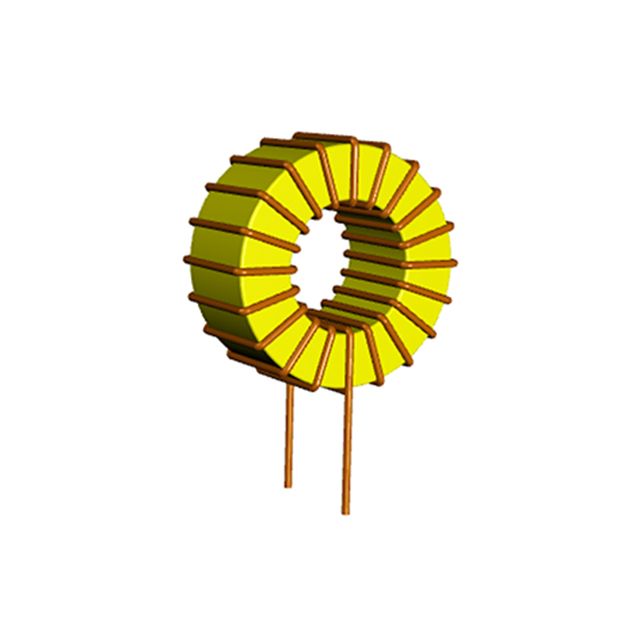

| Device Type Classification | Toroidal | |
| Inductor Core Type | Iron Powder | |
| Coil Inductance Value | 82 µH | |
| Accuracy Tolerance Percentage | ±20% | |
| Ampere Capacity Rating | 5 A | |
| Saturation Current Level | - | |
| Electromagnetic Interference Protection | Unshielded | |
| Direct Current Resistance | 33mOhm Max | |
| Quality Factor at Frequency | - | |
| Self-Resonance Frequency | - | |
| Performance Rating Specs | - | |
| Ambient Temp Range | -40°C ~ 105°C | |
| Test Frequency for Inductance | 1 kHz | |
| Key Product Highlights | - | |
| Attachment Mounting Style | Through Hole | |
| Component Housing Style | Radial, Vertical (Open) | |
| Vendor Package Type | - | |
| Package Size Specs | 1.260" L x 0.630" W (32.00mm x 16.00mm) | |
| Maximum Mounted Height | - |
Description
Sets the ampere rating to 5 A. Provides a DC resistance measurement of 33mOhm Max for accurate circuit operation. Enables a 1 kHz frequency during testing to guarantee accurate device validation. Provides 82 µH inductance for circuit tuning and filtering. Assessed for inductance at 1 kHz frequency to verify component reliability. Substance Iron Powder to achieve optimal electromagnetic efficiency. Mounting configuration Through Hole for structural stability. Temperature range -40°C ~ 105°C for environmental conditions impacting thermal efficiency. Type of housing Tray for safeguarding or transporting components. Style of the enclosure/case Radial, Vertical (Open) that offers mechanical and thermal protection. Product status Active concerning availability and lifecycle. Classification series for the product or component ATCA. Shielding Unshielded for EMI/RFI protection. Details on package size 1.260" L x 0.630" W (32.00mm x 16.00mm) for electrical or mechanical components. Measurement dimensions 1.260" L x 0.630" W (32.00mm x 16.00mm) for component specifications. Precision tolerance level ±20% in manufacturing processes. Type classification Toroidal for specifications.
