Stock:
Distributor: 110
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 250 | ₹ 2,587.23000 | ₹ 6,46,807.50 |
| 100 | ₹ 2,642.41000 | ₹ 2,64,241.00 |
| 50 | ₹ 2,685.13000 | ₹ 1,34,256.50 |
| 25 | ₹ 2,726.96000 | ₹ 68,174.00 |
| 10 | ₹ 2,782.14000 | ₹ 27,821.40 |
| 5 | ₹ 2,824.86000 | ₹ 14,124.30 |
| 1 | ₹ 2,922.76000 | ₹ 2,922.76 |
Stock:
Distributor: 118
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 2,873.99000 | ₹ 2,873.99 |
Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 250 | ₹ 3,129.26000 | ₹ 7,82,315.00 |
| 100 | ₹ 3,266.66000 | ₹ 3,26,666.00 |
| 50 | ₹ 3,374.25000 | ₹ 1,68,712.50 |
| 25 | ₹ 3,485.10000 | ₹ 87,127.50 |
| 10 | ₹ 3,636.68000 | ₹ 36,366.80 |
| 1 | ₹ 4,043.23000 | ₹ 4,043.23 |
Stock:
Distributor: 108
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 3,638.32000 | ₹ 3,638.32 |
| 12 | ₹ 3,489.69000 | ₹ 41,876.28 |
| 24 | ₹ 3,336.61000 | ₹ 80,078.64 |
Stock:
Distributor: 111
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 50 | ₹ 3,672.03000 | ₹ 1,83,601.50 |
| 25 | ₹ 3,784.07000 | ₹ 94,601.75 |
| 10 | ₹ 3,931.71000 | ₹ 39,317.10 |
| 5 | ₹ 4,042.69000 | ₹ 20,213.45 |
| 2 | ₹ 4,302.37000 | ₹ 8,604.74 |
Stock:
Distributor: 121
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 3,773.12000 | ₹ 3,773.12 |
| 5 | ₹ 3,687.15000 | ₹ 18,435.75 |
| 10 | ₹ 3,601.17000 | ₹ 36,011.70 |
| 50 | ₹ 3,515.20000 | ₹ 1,75,760.00 |
| 100 | ₹ 3,427.91000 | ₹ 3,42,791.00 |

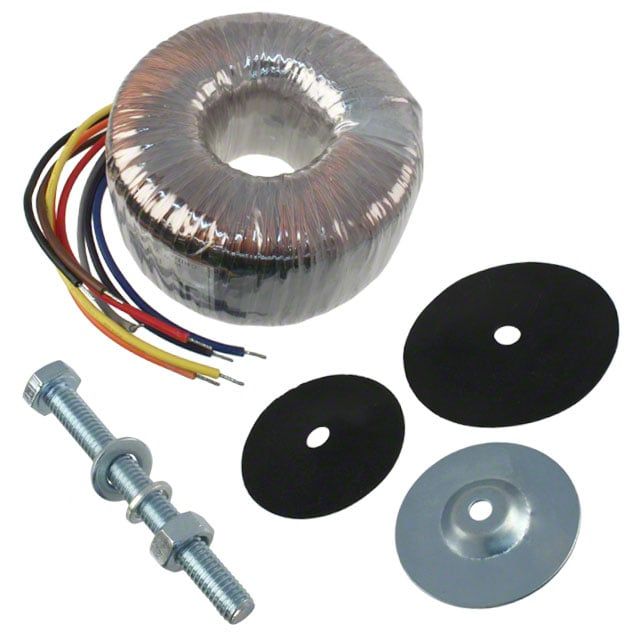

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | Chassis Mount: World Series™ | |
| IC Encapsulation Type | Box | |
| Availability Status | Active | |
| Device Type Classification | Toroidal | |
| Input Primary Voltage | 115V, 230V | |
| Loaded Secondary Volts | Parallel 115V, Series 230V | |
| Peak Output Current | Parallel 860mA, Series 430mA | |
| Input Coil Turns | Dual | |
| Output Coil Turns | Dual | |
| Midpoint Connection | No | |
| Maximum Power Handling | 100VA | |
| Attachment Mounting Style | Chassis Mount | |
| Lead Termination Type | Wire Leads | |
| Package Size Specs | 87.00mm Dia x 47.00mm W | |
| Maximum Mounted Height | 51.0mm | |
| Isolation Barrier Voltage | 4000Vrms | |
| Product Weight Grams | 2.2 lbs (997.9 g) |
Description
Includes a center tap characterized as No for flexible setup. Supplies peak output current defined as Parallel 860mA, Series 430mA. Maximum installed height of 51.0mm for components affixed to the board. Mounting configuration Chassis Mount for structural stability. Type of housing Box for safeguarding or transporting components. Maximum power capability 100VA for safeguarding the device. Primary winding(s) Dual for coil or transformer setup. Product status Active concerning availability and lifecycle. Supplementary turns Dual for transformers or coils. Classification series for the product or component Chassis Mount: World Series™. Details on package size 87.00mm Dia x 47.00mm W for electrical or mechanical components. Measurement dimensions 87.00mm Dia x 47.00mm W for component specifications. Type of termination Wire Leads for connector or device. Type classification Toroidal for specifications. Isolation voltage 4000Vrms for electrical safety. The primary voltage input 115V, 230V for transformers or circuits. Secondary voltage Parallel 115V, Series 230V when fully loaded. Weight 2.2 lbs (997.9 g) for product specifications.
