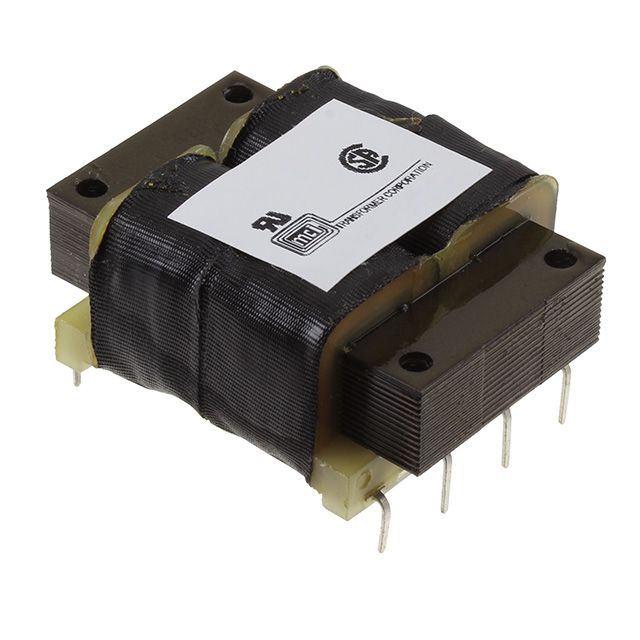

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | 6052R | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Active | |
| Device Type Classification | Laminated Core | |
| Input Primary Voltage | 115V, 230V | |
| Loaded Secondary Volts | Parallel 12V, Series 24V | |
| Peak Output Current | Parallel 500mA, Series 250mA | |
| Input Coil Turns | Dual | |
| Output Coil Turns | Dual | |
| Midpoint Connection | No | |
| Maximum Power Handling | 6VA | |
| Attachment Mounting Style | Through Hole | |
| Lead Termination Type | PC Pin | |
| Package Size Specs | 34.93mm L x 28.58mm W | |
| Maximum Mounted Height | 23.80mm | |
| Isolation Barrier Voltage | 1500Vrms | |
| Product Weight Grams | 0.438 lb (198.67 g) |
Description
Includes a center tap characterized as No for flexible setup. Supplies peak output current defined as Parallel 500mA, Series 250mA. Maximum installed height of 23.80mm for components affixed to the board. Mounting configuration Through Hole for structural stability. Type of housing Bulk for safeguarding or transporting components. Maximum power capability 6VA for safeguarding the device. Primary winding(s) Dual for coil or transformer setup. Product status Active concerning availability and lifecycle. Supplementary turns Dual for transformers or coils. Classification series for the product or component 6052R. Details on package size 34.93mm L x 28.58mm W for electrical or mechanical components. Measurement dimensions 34.93mm L x 28.58mm W for component specifications. Type of termination PC Pin for connector or device. Type classification Laminated Core for specifications. Isolation voltage 1500Vrms for electrical safety. The primary voltage input 115V, 230V for transformers or circuits. Secondary voltage Parallel 12V, Series 24V when fully loaded. Weight 0.438 lb (198.67 g) for product specifications.
