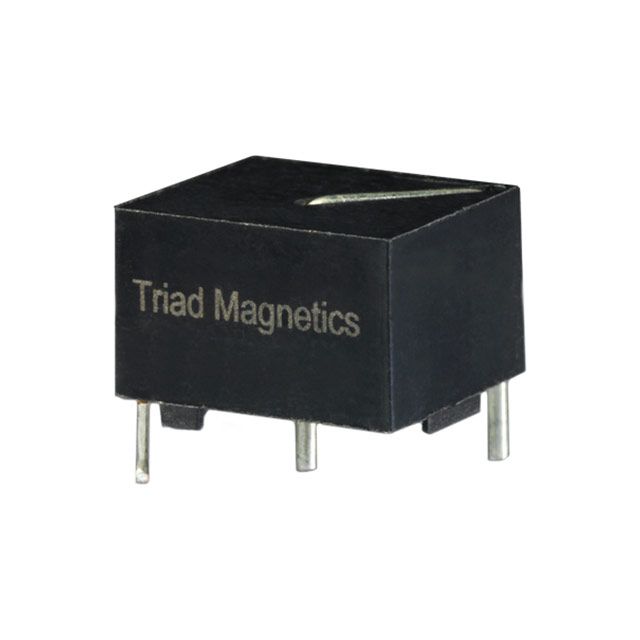

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | CST | |
| IC Encapsulation Type | Tube | |
| Availability Status | Active | |
| Operational Hz Spectrum | 50kHz ~ 500kHz | |
| Device Type Classification | Invasive | |
| Ampere Capacity Rating | 25 A | |
| Coil Inductance Value | 18 mH | |
| Volt-Second Product | 350VµS | |
| Transformer Turn Ratio | 1:100 | |
| Current Proportion | - | |
| Direct Current Resistance | 2Ohm | |
| Performance Rating Specs | - | |
| Attachment Mounting Style | Through Hole | |
| Package Size Specs | 0.669" L x 0.591" W (17.00mm x 15.00mm) | |
| Maximum Mounted Height | 0.472" (12.00mm) | |
| Lead Termination Type | PC Pin |
Description
Sets the ampere rating to 25 A. Provides a DC resistance measurement of 2Ohm for accurate circuit operation. Includes ET volt-time rating quantified at 350VµS. Offers a 50kHz ~ 500kHz frequency spectrum for broad-spectrum applications. Maximum installed height of 0.472" (12.00mm) for components affixed to the board. Provides 18 mH inductance for circuit tuning and filtering. Mounting configuration Through Hole for structural stability. Type of housing Tube for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Classification series for the product or component CST. Details on package size 0.669" L x 0.591" W (17.00mm x 15.00mm) for electrical or mechanical components. Measurement dimensions 0.669" L x 0.591" W (17.00mm x 15.00mm) for component specifications. Type of termination PC Pin for connector or device. Turns ratio from primary to secondary 1:100 in transformers. Type classification Invasive for specifications.
