Description

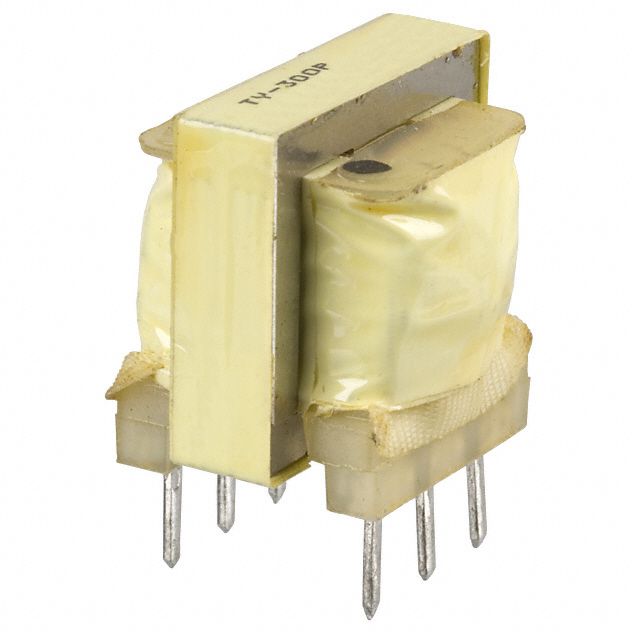

Records primary DCR at 172Ohm. Specifies secondary DCR as 66Ohm, 66Ohm. Offers a 300Hz ~ 3.5kHz frequency spectrum for broad-spectrum applications. Maximum installed height of 0.740" (18.80mm) for components affixed to the board. The primary impedance is rated at 600 Ohms for electrical design considerations. The secondary impedance is established at 600/600 Ohms to achieve optimal load compatibility. Offers 0.8dB Typ insertion loss to minimize signal attenuation. Mounting configuration Through Hole for structural stability. Temperature range -20°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Bulk for safeguarding or transporting components. Signal strength -45dB ~ 7dB to meet operational needs. Product status Active concerning availability and lifecycle. Loss of signal return 30dB Typ for quality and reflection evaluations. Classification series for the product or component TY. Details on package size 0.812" L x 0.700" W (20.62mm x 17.78mm) for electrical or mechanical components. Measurement dimensions 0.812" L x 0.700" W (20.62mm x 17.78mm) for component specifications. Type of termination PC Pin for connector or device. Design of transformer Data/Voice Coupling for electrical conversion. Turns ratio from primary to secondary 1:2.48 in transformers. Isolation voltage 1500VAC for electrical safety.
