Description

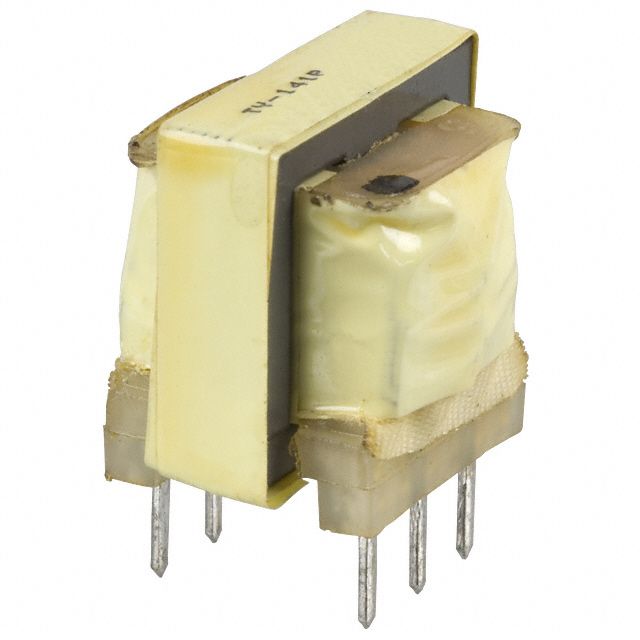

Records primary DCR at 820Ohm. Specifies secondary DCR as 1.07kOhm. Offers a 200Hz ~ 15kHz frequency spectrum for broad-spectrum applications. Produces a ±2dB frequency response for dependable signal integrity. Maximum installed height of 0.740" (18.80mm) for components affixed to the board. The primary impedance is rated at 10kCT Ohms for electrical design considerations. The secondary impedance is established at 10kCT Ohms to achieve optimal load compatibility. Offers 1.5dB insertion loss to minimize signal attenuation. Mounting configuration Through Hole for structural stability. Temperature range -20°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Bulk for safeguarding or transporting components. Signal strength 100mW to meet operational needs. Product status Active concerning availability and lifecycle. Loss of signal return 26dB for quality and reflection evaluations. Classification series for the product or component TY. Details on package size 0.812" L x 0.700" W (20.62mm x 17.78mm) for electrical or mechanical components. Measurement dimensions 0.812" L x 0.700" W (20.62mm x 17.78mm) for component specifications. Type of termination PC Pin for connector or device. Design of transformer Data/Voice Coupling for electrical conversion. Turns ratio from primary to secondary 1:1 in transformers. Isolation voltage 1500V for electrical safety.
