Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Obsolete | |
| Audio/Video Channel Count | 1 | |
| Isolation Barrier Voltage | 1000VDC | |
| Minimum Transfer Efficiency | 50% @ 1mA | |
| Maximum Transfer Efficiency | - | |
| Typical Switch Times | - | |
| Typical Edge Transition Time | 20µs, 20µs | |
| Entry Signal Category | DC | |
| Exit Signal Category | Transistor with Base | |
| Peak Output Voltage | 40V | |
| Per-Channel Output Current | 50mA | |
| Typical Forward Voltage | 1.5V (Max) | |
| Max Forward DC Current | 40 mA | |
| Max Saturation Voltage Drop | 300mV | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Ambient Temp Range | -55°C ~ 125°C | |
| Attachment Mounting Style | Through Hole | |

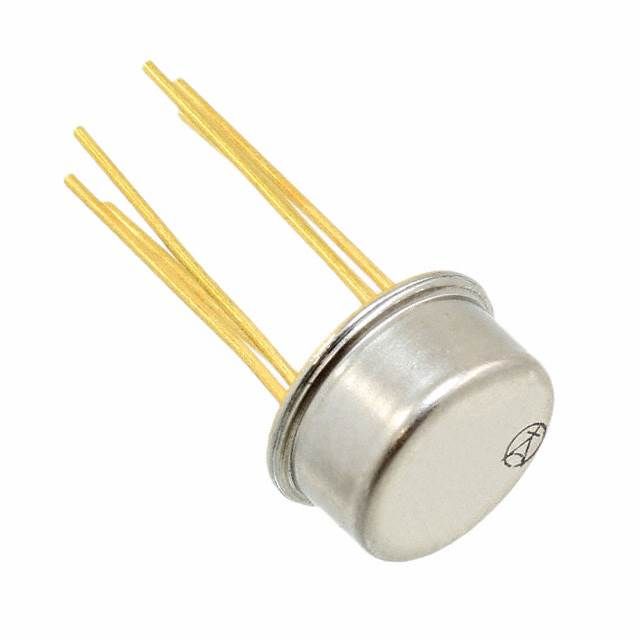

| Component Housing Style | TO-78-6 Metal Can | |
| Vendor Package Type | TO-78-6 |
Description
Indicates 1 channels present for improved performance. Offers a maximum DC forward current (If) specified at 40 mA. Shows per-channel output current rated at 50mA. Includes a minimum transfer ratio rated at 50% @ 1mA. Configured with DC input type for diverse applications. Mounting configuration Through Hole for structural stability. Overall channels 1 for input/output or communication purposes. Temperature range -55°C ~ 125°C for environmental conditions impacting thermal efficiency. Type Transistor with Base for ensuring compatibility with output systems. Voltage 40V for optimal output electric potential. Type of housing Bulk for safeguarding or transporting components. Style of the enclosure/case TO-78-6 Metal Can that offers mechanical and thermal protection. Type of package TO-78-6 that preserves the integrity of the device. Product status Obsolete concerning availability and lifecycle. Typical rise and fall duration 20µs, 20µs for signal transitions. Supplier package type TO-78-6 for component selection. Maximum Vce saturation 300mV relevant to transistors. Common forward voltage Vf 1.5V (Max) for diode operation. Isolation voltage 1000VDC for electrical safety. The maximum output voltage 40V for devices.
