Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | LTV-8x7 | |
| IC Encapsulation Type | Tube | |
| Availability Status | Obsolete | |
| Audio/Video Channel Count | 4 | |
| Isolation Barrier Voltage | 5000Vrms | |
| Minimum Transfer Efficiency | 50% @ 5mA | |
| Maximum Transfer Efficiency | 600% @ 5mA | |
| Typical Switch Times | - | |
| Typical Edge Transition Time | 4µs, 3µs | |
| Entry Signal Category | DC | |
| Exit Signal Category | Transistor | |
| Peak Output Voltage | 35V | |
| Per-Channel Output Current | 50mA | |
| Typical Forward Voltage | 1.2V | |
| Max Forward DC Current | 50 mA | |
| Max Saturation Voltage Drop | 200mV | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Ambient Temp Range | -30°C ~ 110°C | |
| Attachment Mounting Style | Through Hole | |

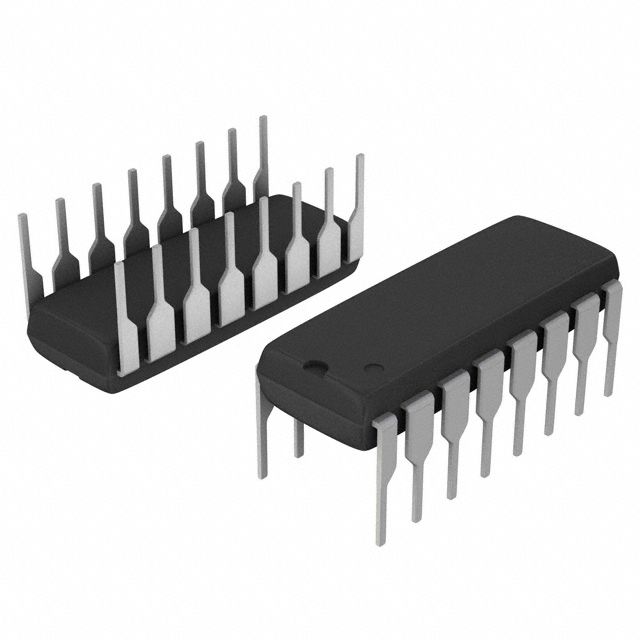

| Component Housing Style | 16-DIP (0.300", 7.62mm) | |
| Vendor Package Type | 16-DIP |
Description
Indicates 4 channels present for improved performance. Offers a maximum DC forward current (If) specified at 50 mA. Shows per-channel output current rated at 50mA. Allows for a maximum transfer ratio assessed at 600% @ 5mA. Includes a minimum transfer ratio rated at 50% @ 5mA. Configured with DC input type for diverse applications. Mounting configuration Through Hole for structural stability. Overall channels 4 for input/output or communication purposes. Temperature range -30°C ~ 110°C for environmental conditions impacting thermal efficiency. Type Transistor for ensuring compatibility with output systems. Voltage 35V for optimal output electric potential. Type of housing Tube for safeguarding or transporting components. Style of the enclosure/case 16-DIP (0.300", 7.62mm) that offers mechanical and thermal protection. Type of package 16-DIP that preserves the integrity of the device. Product status Obsolete concerning availability and lifecycle. Typical rise and fall duration 4µs, 3µs for signal transitions. Classification series for the product or component LTV-8x7. Supplier package type 16-DIP for component selection. Maximum Vce saturation 200mV relevant to transistors. Common forward voltage Vf 1.2V for diode operation. Isolation voltage 5000Vrms for electrical safety. The maximum output voltage 35V for devices.
