Stock:
Distributor: 126
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 24.48000 | ₹ 24.48 |
Stock:
Distributor: 157
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 14400 | ₹ 26.57000 | ₹ 3,82,608.00 |
| 800 | ₹ 28.77000 | ₹ 23,016.00 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tube | |
| Availability Status | Active | |
| Audio/Video Channel Count | 1 | |
| Isolation Barrier Voltage | 3750Vrms | |
| Minimum Transfer Efficiency | 50% @ 5mA | |
| Maximum Transfer Efficiency | 600% @ 5mA | |
| Typical Switch Times | - | |
| Typical Edge Transition Time | 3µs, 4µs | |
| Entry Signal Category | DC | |
| Exit Signal Category | Transistor | |
| Peak Output Voltage | 80V | |
| Per-Channel Output Current | 50mA | |
| Typical Forward Voltage | 1.2V | |
| Max Forward DC Current | 50 mA | |
| Max Saturation Voltage Drop | 200mV | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Ambient Temp Range | -55°C ~ 110°C | |
| Attachment Mounting Style | Surface Mount | |

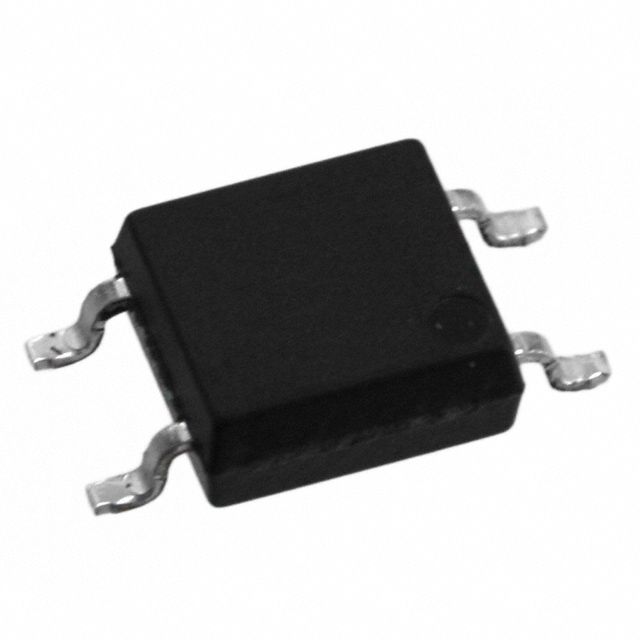

| Component Housing Style | 4-SMD, Gull Wing | |
| Vendor Package Type | 4-SOP (2.54mm) |
Description
Indicates 1 channels present for improved performance. Offers a maximum DC forward current (If) specified at 50 mA. Shows per-channel output current rated at 50mA. Allows for a maximum transfer ratio assessed at 600% @ 5mA. Includes a minimum transfer ratio rated at 50% @ 5mA. Configured with DC input type for diverse applications. Mounting configuration Surface Mount for structural stability. Overall channels 1 for input/output or communication purposes. Temperature range -55°C ~ 110°C for environmental conditions impacting thermal efficiency. Type Transistor for ensuring compatibility with output systems. Voltage 80V for optimal output electric potential. Type of housing Tube for safeguarding or transporting components. Style of the enclosure/case 4-SMD, Gull Wing that offers mechanical and thermal protection. Type of package 4-SOP (2.54mm) that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Typical rise and fall duration 3µs, 4µs for signal transitions. Supplier package type 4-SOP (2.54mm) for component selection. Maximum Vce saturation 200mV relevant to transistors. Common forward voltage Vf 1.2V for diode operation. Isolation voltage 3750Vrms for electrical safety. The maximum output voltage 80V for devices.
